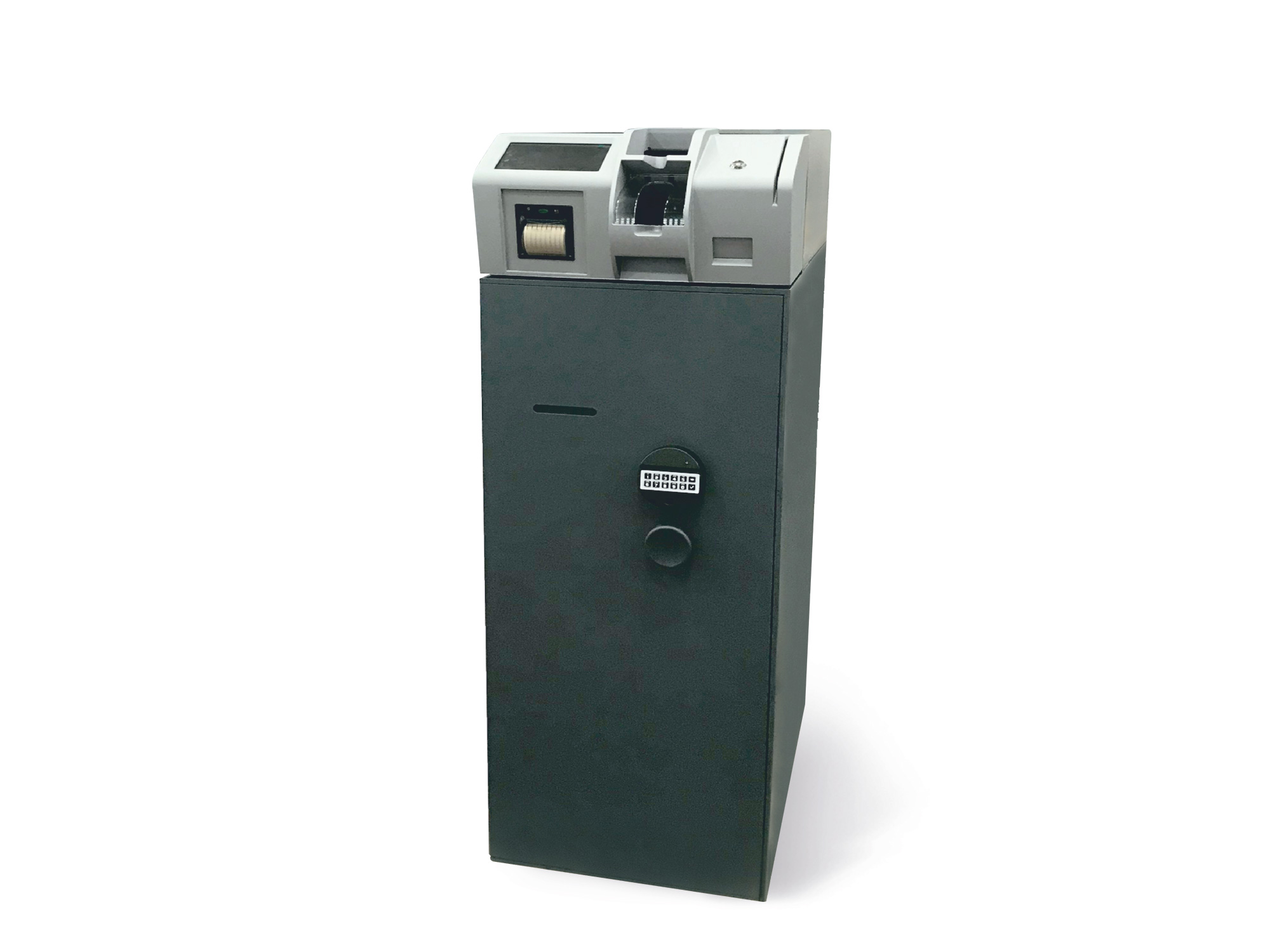

SDM 505S
NOTE DEPOSIT & RECYCLING MACHINE

The SDM5055 is a unique BANKNOTE deposit and recycling machine from CIMA. Equipped with five recycling drums each with 500 notes capacity plus an innovative stacking bag solution to store surplus funds (up to 4,000 notes) make the SDM5055 an ideal solution tor medium sized retail and hospitality environments. The unit manages up to 6,500 banknotes (2 ,500 in recycling, 4,000 in deposit). The input slot can hold up to 200 banknotes with continuous feeding. The output slot holds 30 banknotes. Powered by CIMA’s own BV5000 validator ensures full image authenticity and compliance with all major global central banks.

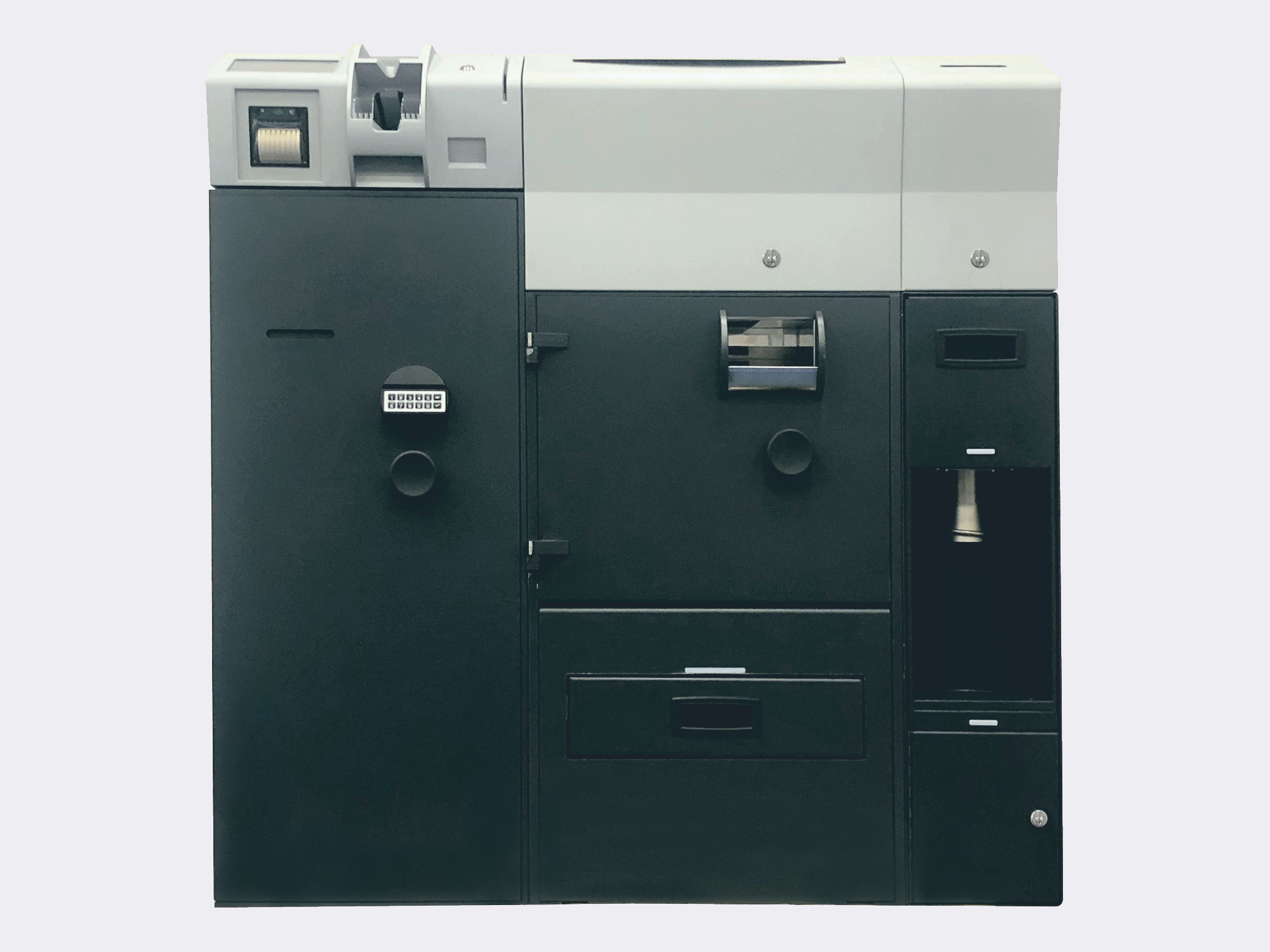

The SDM5055 is ideally suited to medium cash volume environments. When combined with one of CIMA’s industry leading coin recycling machines a fully integrated and cash management solution is achieved. Time spent on float preparation, end of shift cash up’s and reconciliation is greatly reduced. Operators can identify themselves through Dallas key, PIN code or barcode badge to gain access to the application software (CAOS) to perform their transactions. Transaction confirmations can be printed via the integrated thermal receipt printer.

DEPLIANT

BENEFITS
• High performance BVS000 validator for fast and accurate note processing.
• 5 recycling drums fully configurable based on customer note volume requirements with possible ESCROW function to dispense deposited notes back out.
• High capacity heat sealing stacking bag system for surplus and non recycled notes. Easyfor CIT or bank deposit access
• No deposit cassette mean less ongoing costs and less maintenance
• Notes are stacked tightly in plastic bag that is sealed at the top and bottom prior to removal. Allows for easy transport and processing at CIT depots.
• Safe can only be open ed once bag is fully sealed
• Fully compatible with CAOS device software and C-Link management platform
• C-Link can be configured to send data to various 3rd party applications for reconciliation and reporting including those that may provide overnight credit / same day value of funds deposited.
• Easy maintenance and accessibility
• See through materials for transport technology for better visibility of notes through the transport process
• Magnetically locked service doors for immediate access to note jam areas

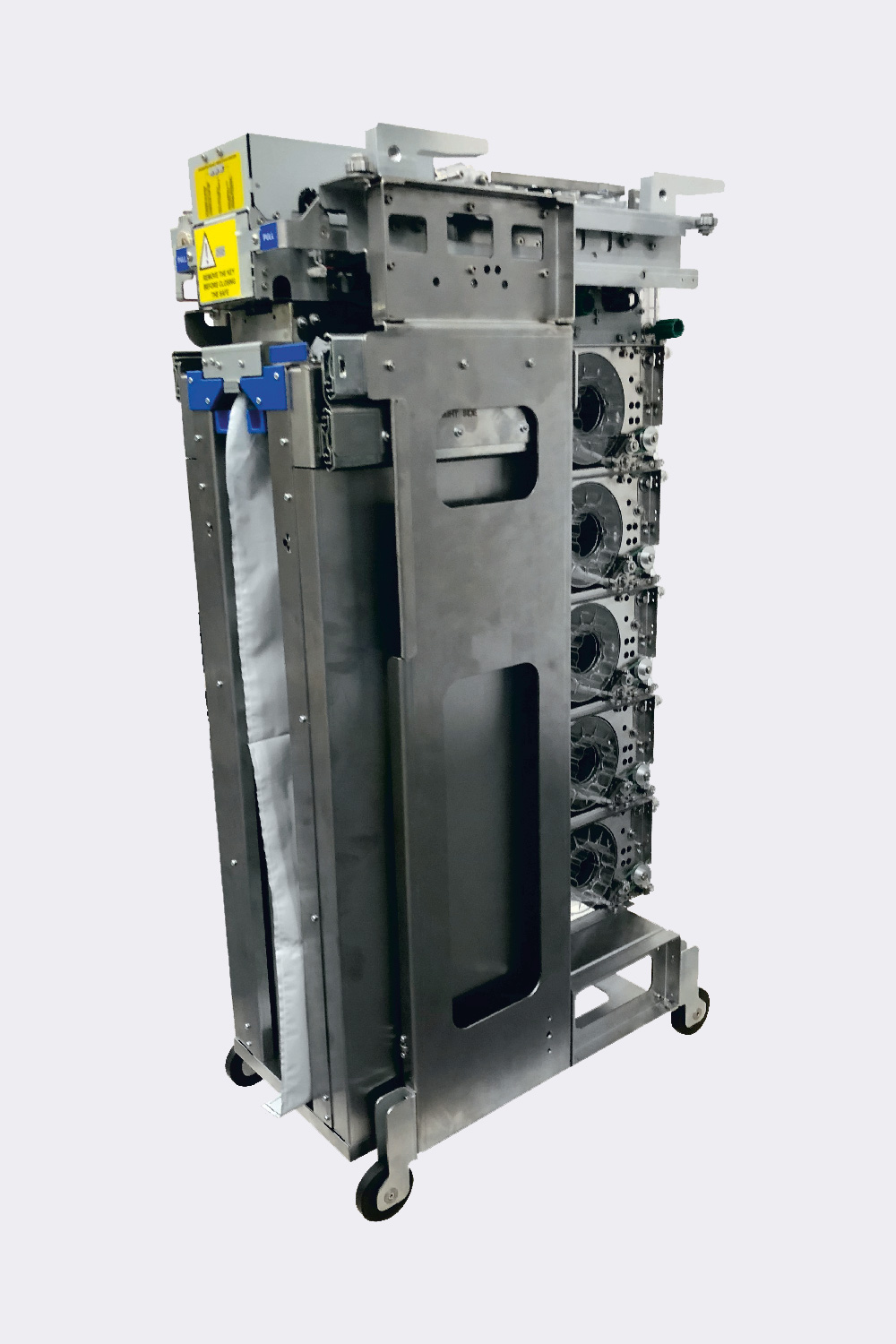

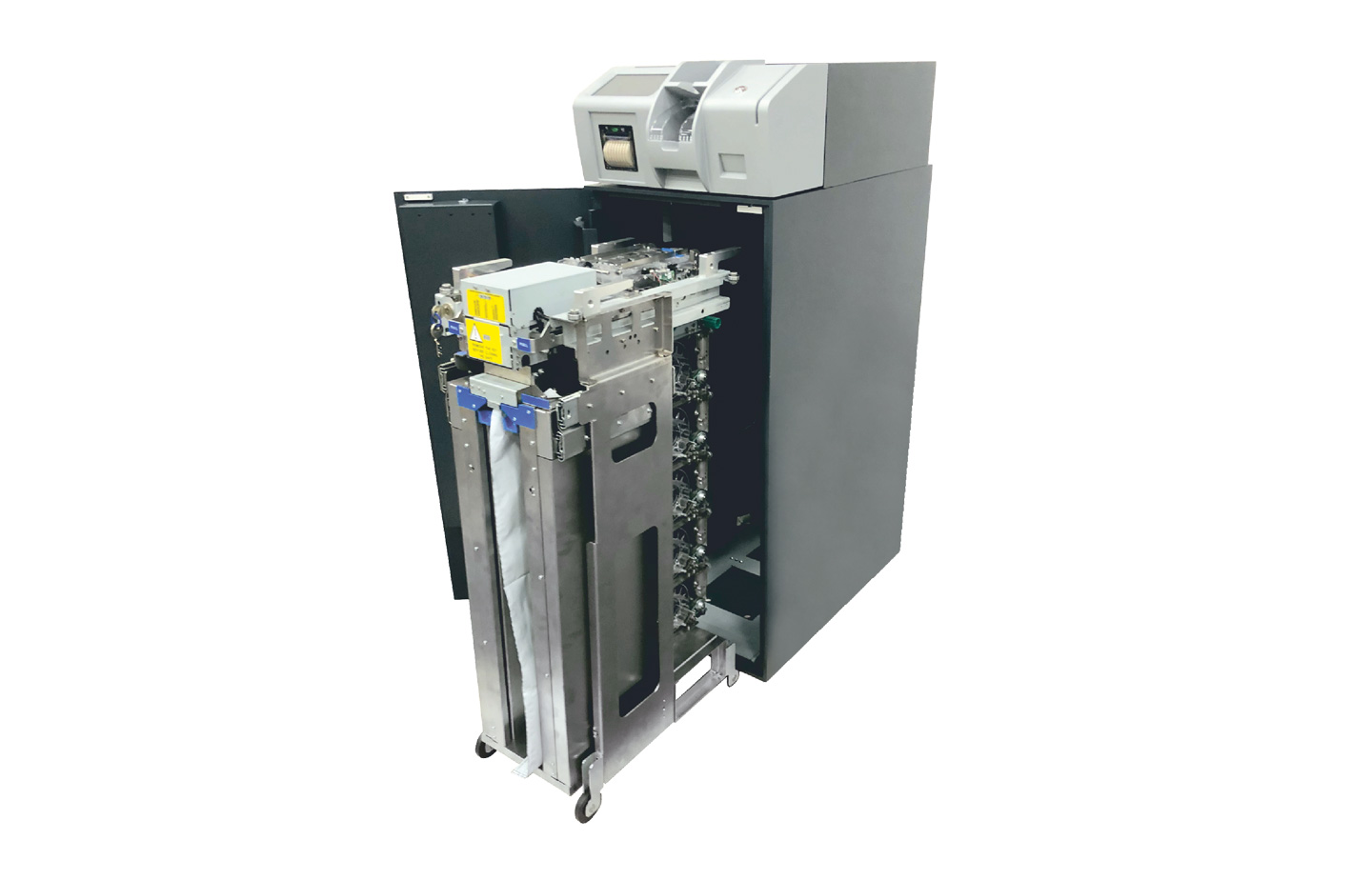

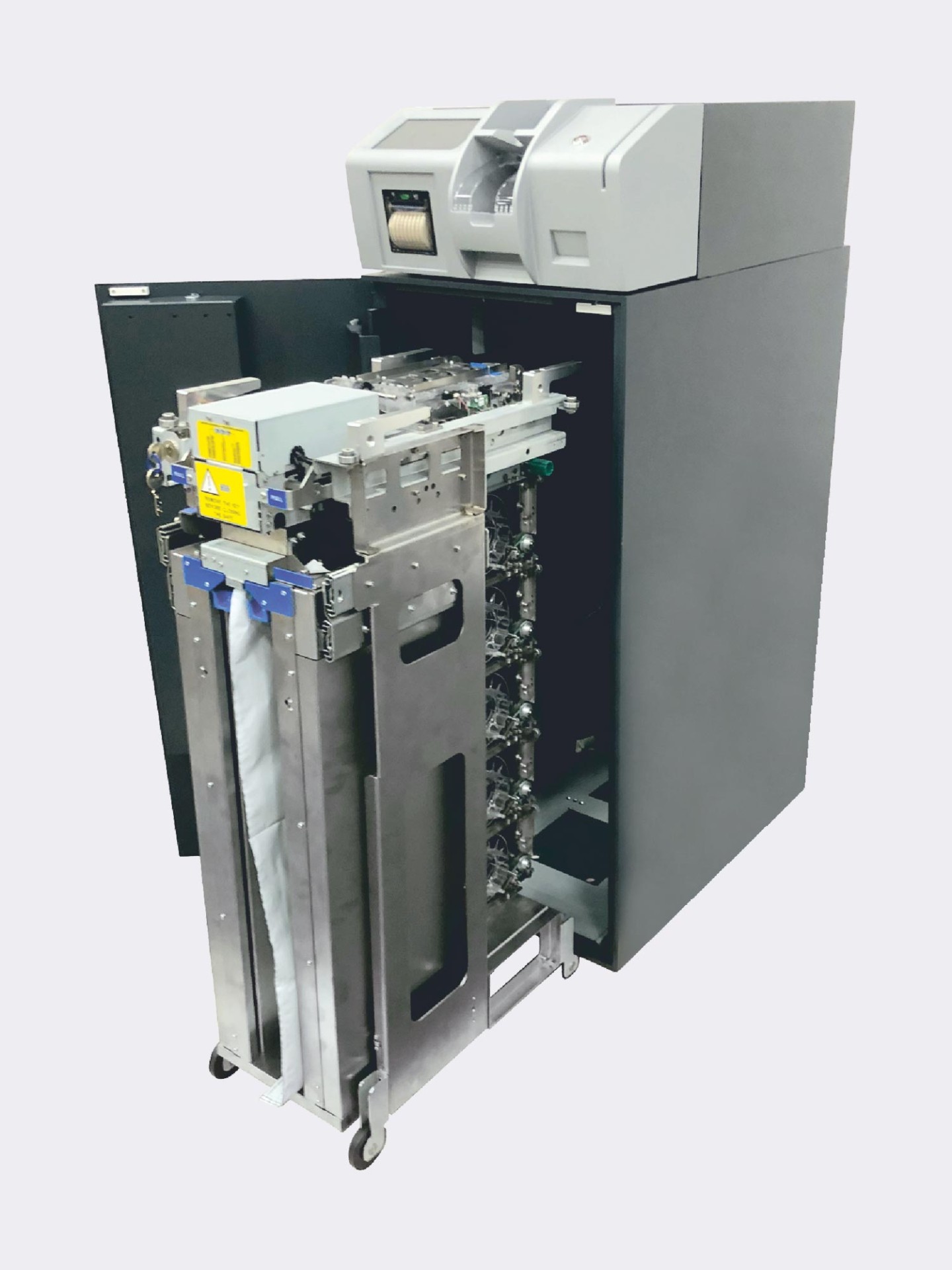

• New frame completely independent of main device. Allows for easy cleaning, maintenance or replacement when required.

ACCESSORIES
• 15″ integrated touch screen
• 3″ thermal receipt printer on bracket
• Software and hardware to manage alarms and security locks
• UPS
• Integrated barcode reader

FEATURES and SPECIFICATIONS
• Depositspeed: 6 banknotes per second
• Dispensespeed: 5 banknotes per second
• 5 recycling drums – 400 banknotes per drum (US currency).
• Self sealing stacking bag mechanism – 4,000 banknotes
* Capacity may vary according lo banknote thickness and quality
• Input slot capacity: 200 banknotes with continuous feeding
• Output slot capacity: 30 banknotes
• 7″ touch screen for operator assistance
• Optional multicurrency operation (up to 160 denominations)
• Compatible with CAOS and C-Link software platforms

ELECTRICAL
• Voltage: 100V-240V AC
• Frequency: 50Hz -60Hz

CONNECTIONS
• 1 x Port Giga bit Ethernet (1000Mbs)
• USB 2.0 port (No User lnterface)

SIZE OF BANKNOTES HANDLED
• Length from 120mm to 177mm
• Height from 60mm to 85mm

C-LINK IS THE INNOVATIVE SOFTWARE PLATFORM FOR THE REMOTE MANAGEMENT OF THE CASH HANDLING DEVICES.

This software gives a further added value to CIMA devices, thanks to different services that allow to increase the level of information about one’s own fleet of machines and simplify their management at the same time.

The functionalities provided by the platform are:
• Remote distribution of the firmware updates as well as the recognition sensor: this allows to have a fleet of machines always updated in a short time, without requiring any interventions in the field.
• Remote monitoring of the status of the devices in real time: this enables to identify possible problems from a remote post, allowing an improvement of the quality of the help-desk service with more certain and detailed information.
• Remote monitoring of the contents of the devices and of the cash handling in real time: this allows to have always a global vision of the level of use of one’s own devices through suitable reports and statistics.
• Remote management of the configuration of the devices: any configuration can be carried out from remote post with no need of on-site interventions.
• Production of the statistics about the handling of unfit banknotes according to the Central Bank current regulation.

C-LINK – MODULES

SOFTWARE ARCHITECTURE

C-LINK APPLIED TO RETAIL

C-LINK APPLIED TO BANK

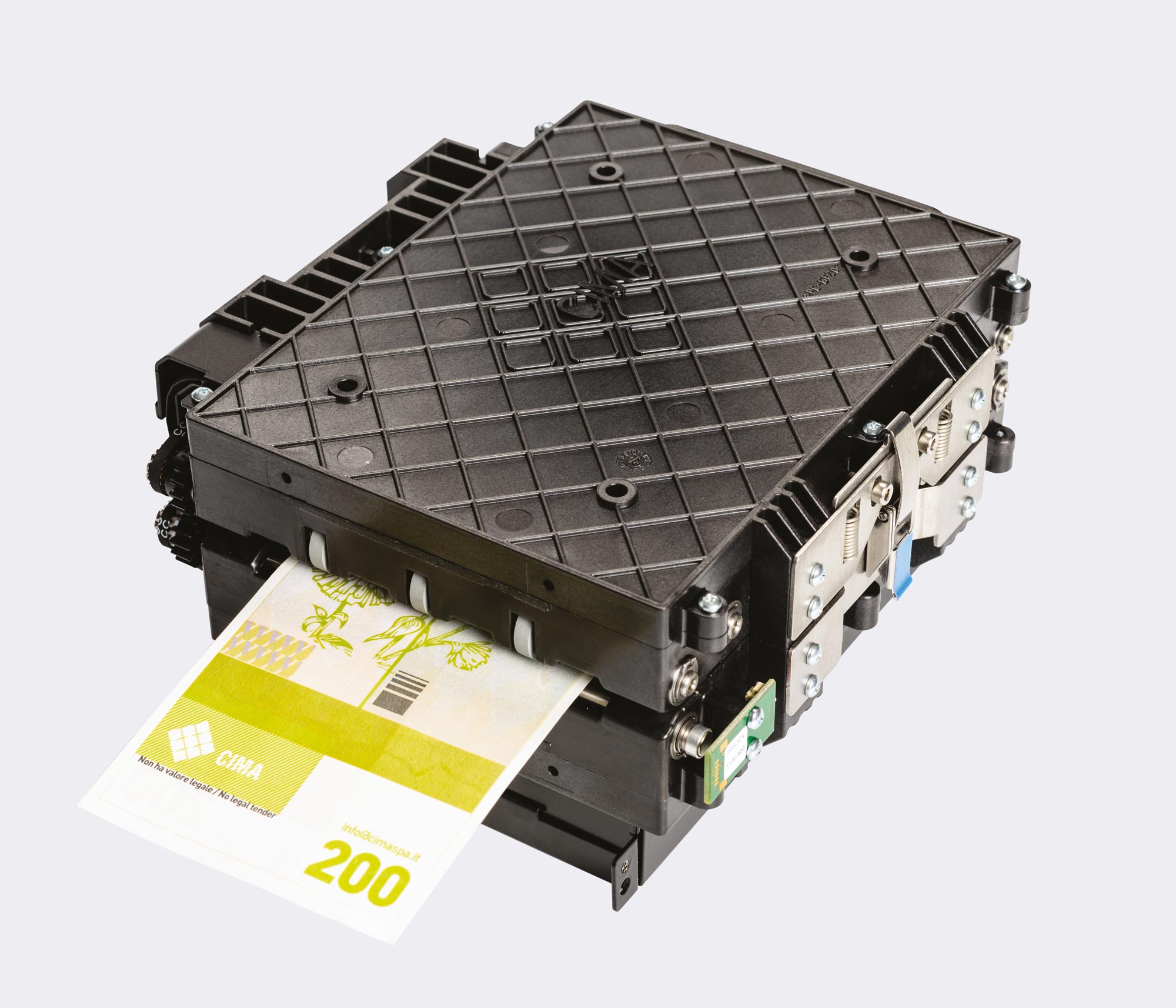

SENSOR BV5000

BV 5000 is an authenticity and fitness detector. It was born in 2011 and is fruit of CIMA R&D team. It complies with the regulations of the main Central Banks Euro currency included); the templates have been developed for many non-European currencies, as well as for tickets, vouchers and cheques. BV5000 is a full-image sensor, which combines the most advanced technologies on the market: magnetic, infrared, fluorescence, ultraviolet, visible light.
