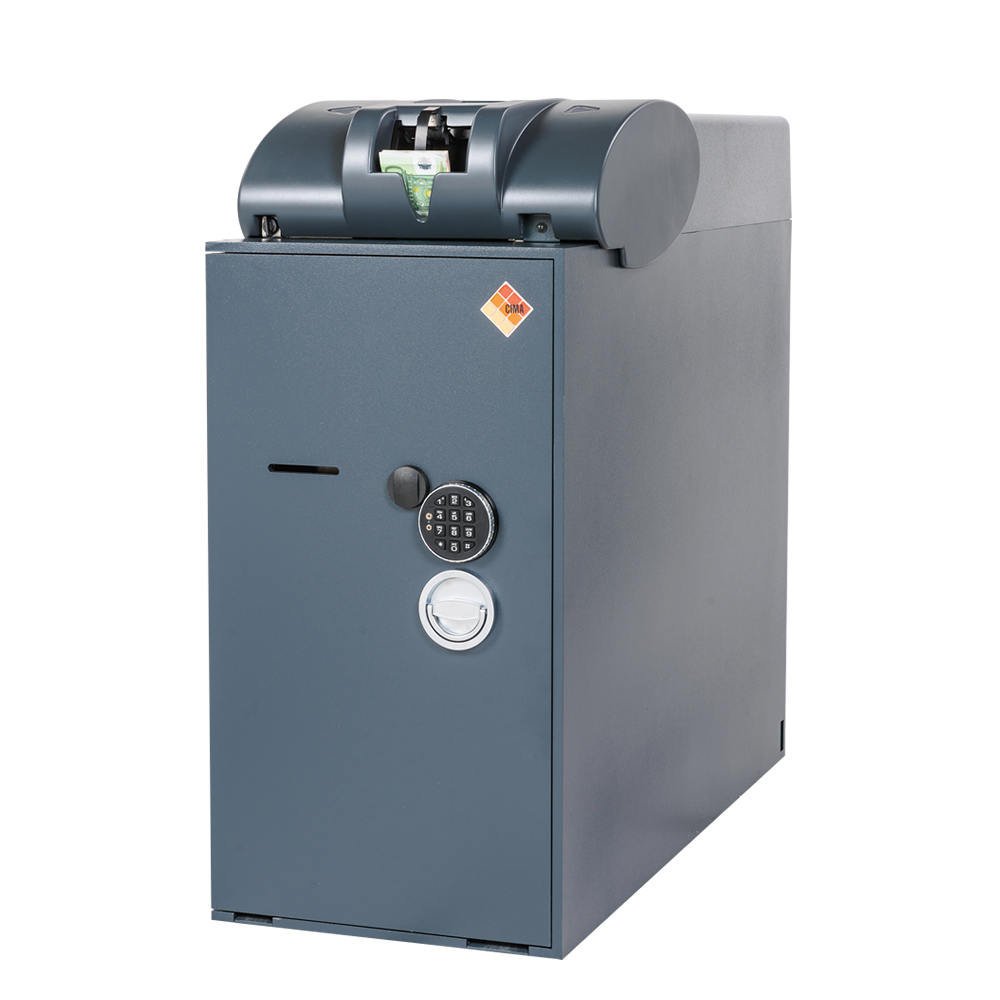

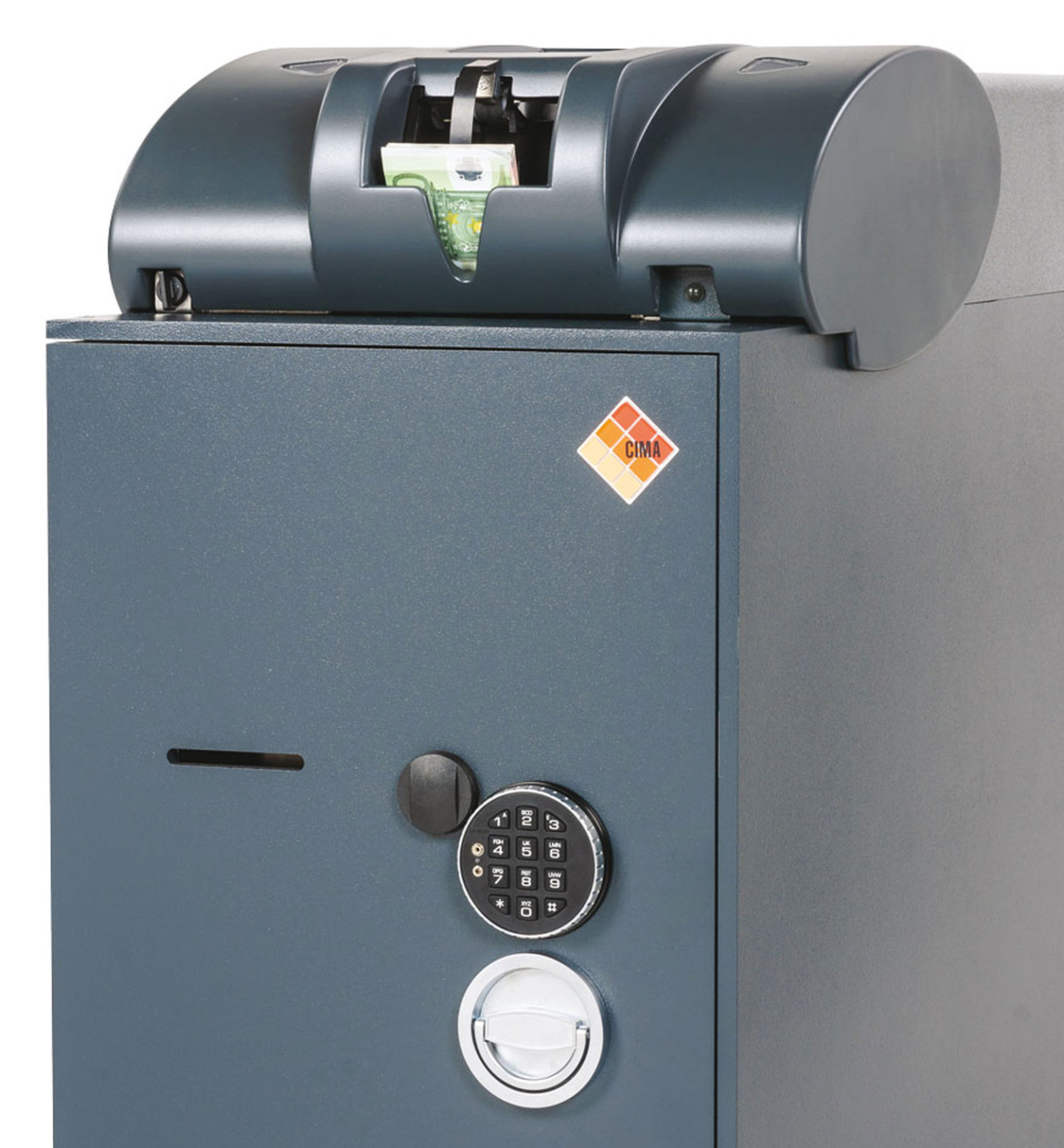

AST 7016
TELLER CASH RECYCLER

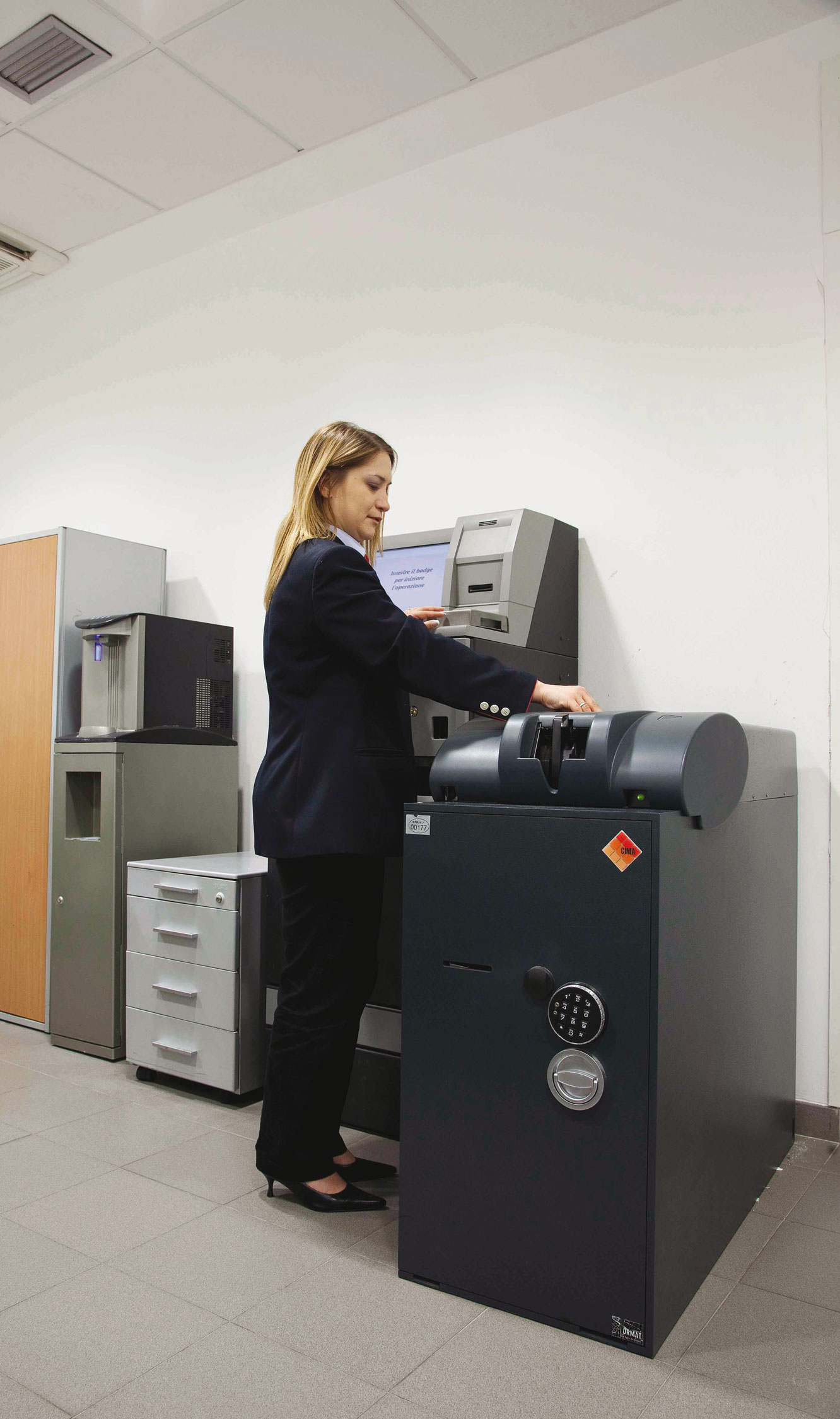

AST 7016, automatic cash in-cash out recycling unit, meets the requirements of those bank branches or retail where the amount of recycled banknotes is particularly high.

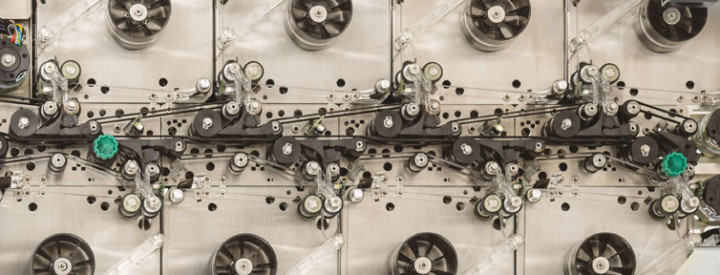

Equipped with 16 drums with a capacity of up to 700 banknotes each, this unit is the most capacious and flexible now available on the market:
it can handle and recycle up to 11.200 banknotes.

DEPLIANT

• The multicurrency operation mode makes it perfect for any background
• Thanks to its extremely high capacity it is also ideal for back-office applications to be used by several operators
Banknotes’ recognition is performed by CIMA’s sensor BV 5000 employing all the most advanced technologies: magnetic, infrared, fluorescence, ultraviolet, visible light. It’s possible to have both the authenticity recognition function and the fitness feature; in both cases all solutions are compliant with the regulations of the main Central Banks (Euro currency included).

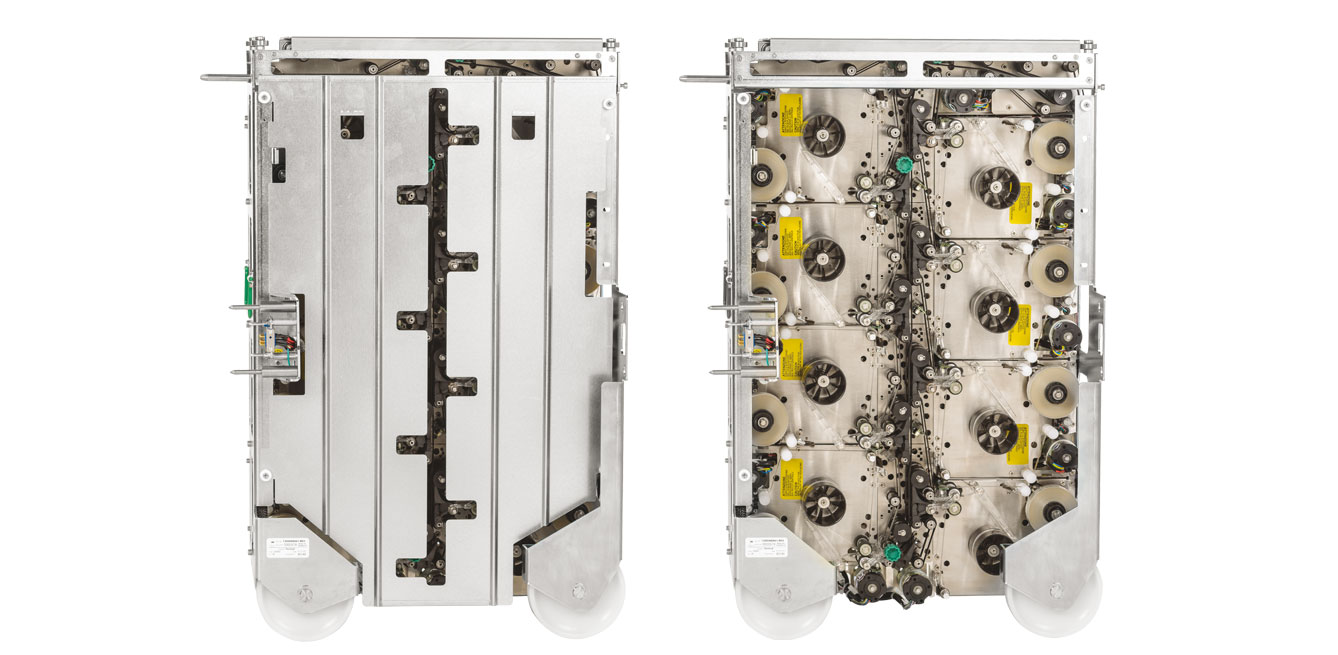

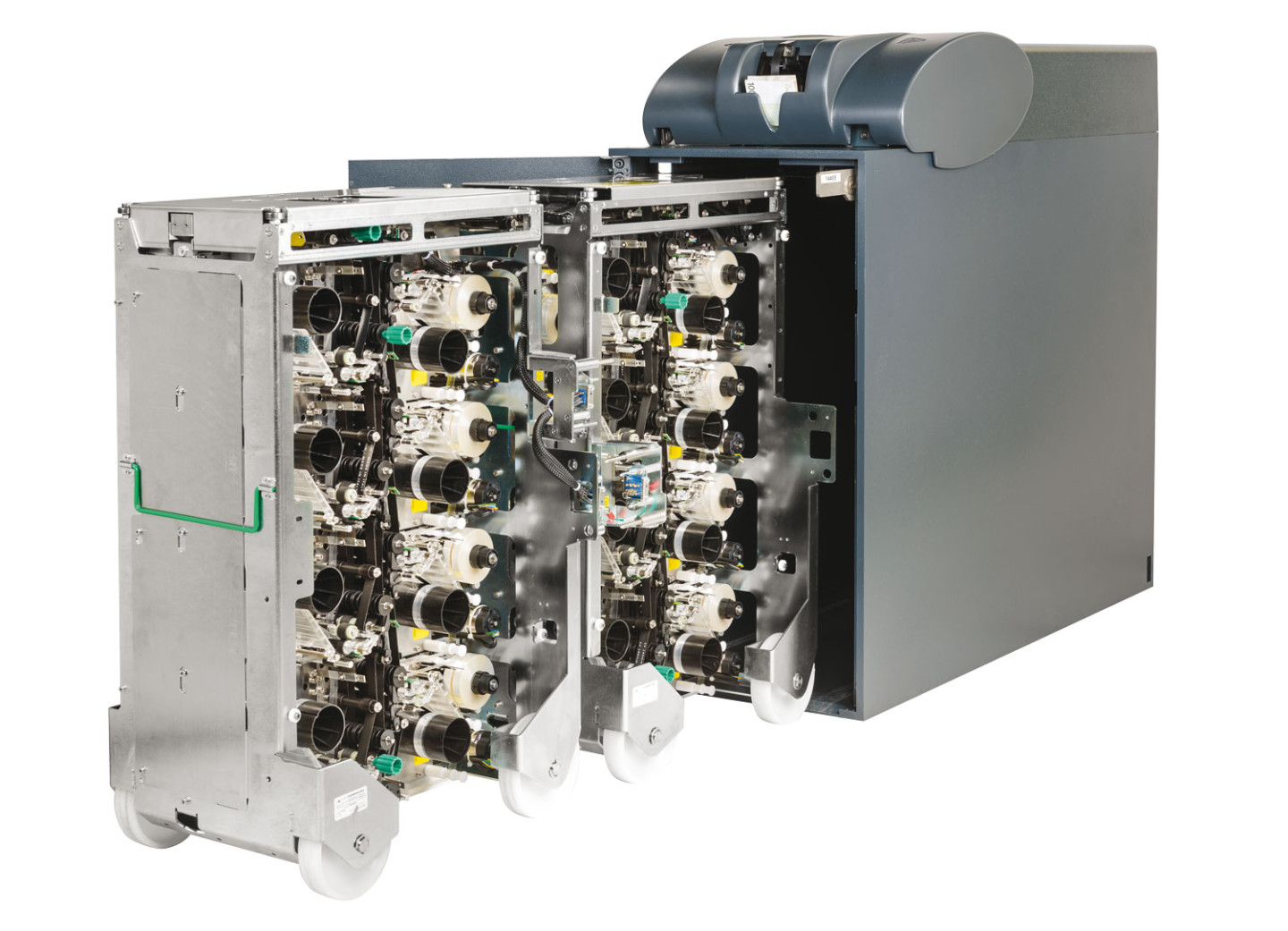

• The maintenance footprint is extremely compact thanks to the modular system with two separate internal frames

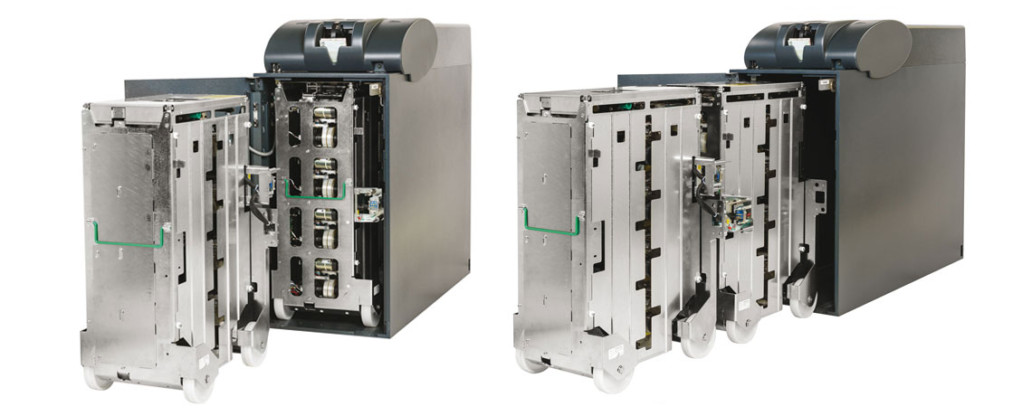

• If the user’s requirements had to change over the time and it was necessary to handle a lot of cash in, AST 7016 can be converted into AST 7008 thanks to the plug & play module, which allows to replace an 8-drum frame with a frame carrying a CIT bag
Remarkable reduction of the teller’s working time both in deposit and withdrawal stages (high transaction speed: 6 banknotes/second)
• Thanks to the high security level it makes open branches something really possible
• Real time update of balances and cash in hands
• Possibility to return the last deposit made
• It considerably reduces the cash in hand within the branch
• Software and hardware for the management of alarms and security locks
Possibility of remote management through the C-Link platform

SAFE AVAILABLE IN
12 mm (UL 291), CEN III and CEN IV

WEIGHT
From 450 kg to 740 kg according to the configuration

ELECTRICAL CHARACTERISTICS
Voltage 90 – 240 V AC
Frequency 50 – 60 Hz
Power input 600 W

CONNECTIONS
RS232 serial port or USB 1.0 port or ethernet

NUMBER OF DRUMS HANDLED
Up to 16

DEPOSIT CAPACITY
Up to 700 banknotes each drum

HANDLING OF DRUMS
•Storage by single denomination with recycling function
• Multi-denomination storage with stocking function
• Drums’ flexibility

BANKNOTES DETECTOR
Authenticity in compliance with the regulations of the main Central Banks
Possibility of multi-currency operation
Fitness in compliance with the regulations of the main Central Banks

DEPOSIT AND WITHDRAWAL SPEED
Up to 6 banknotes per second

SIZE OF THE BANKNOTES HANDLED (standard configuration)
Length from 100 mm to 190 mm
Width from 60 mm to 82 mm

SECURITY
• Handling of 20 time bands
• 3 different alarm outputs
• Timed handling of locks

C-LINK IS THE INNOVATIVE SOFTWARE PLATFORM FOR THE REMOTE MANAGEMENT OF THE CASH HANDLING DEVICES.

This software gives a further added value to CIMA devices, thanks to different services that allow to increase the level of information about one’s own fleet of machines and simplify their management at the same time.

The functionalities provided by the platform are:
• Remote distribution of the firmware updates as well as the recognition sensor: this allows to have a fleet of machines always updated in a short time, without requiring any interventions in the field.
• Remote monitoring of the status of the devices in real time: this enables to identify possible problems from a remote post, allowing an improvement of the quality of the help-desk service with more certain and detailed information.
• Remote monitoring of the contents of the devices and of the cash handling in real time: this allows to have always a global vision of the level of use of one’s own devices through suitable reports and statistics.
• Remote management of the configuration of the devices: any configuration can be carried out from remote post with no need of on-site interventions.
• Production of the statistics about the handling of unfit banknotes according to the Central Bank current regulation.

C-LINK – MODULES

SOFTWARE ARCHITECTURE

C-LINK APPLIED TO RETAIL

C-LINK APPLIED TO BANK

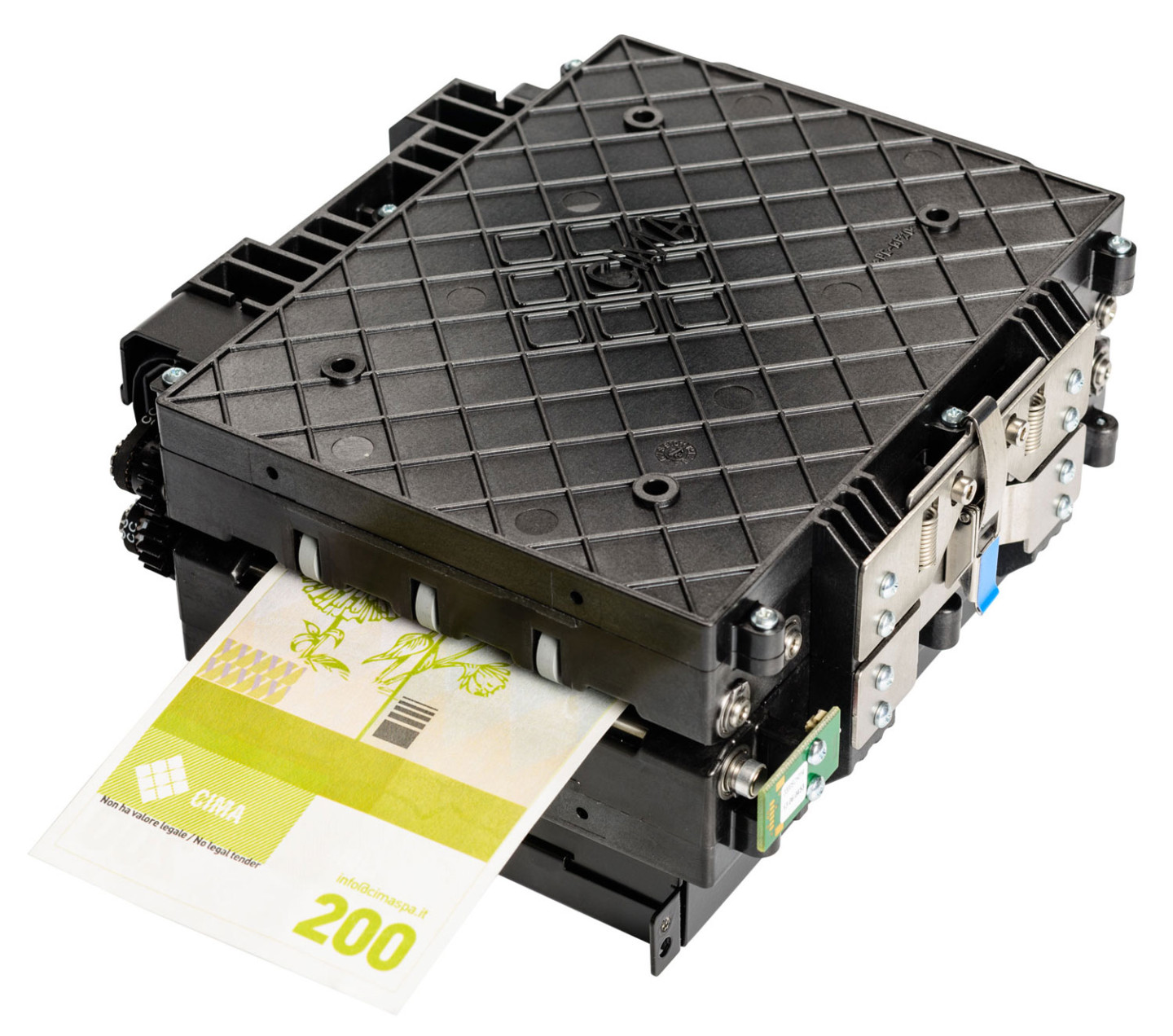

SENSOR BV5000

BV 5000 is an authenticity and fitness detector. It was born in 2011 and is fruit of CIMA R&D team. It complies with the regulations of the main Central Banks Euro currency included); the templates have been developed for many non-European currencies, as well as for tickets, vouchers and cheques. BV5000 is a full-image sensor, which combines the most advanced technologies on the market: magnetic, infrared, fluorescence, ultraviolet, visible light.
