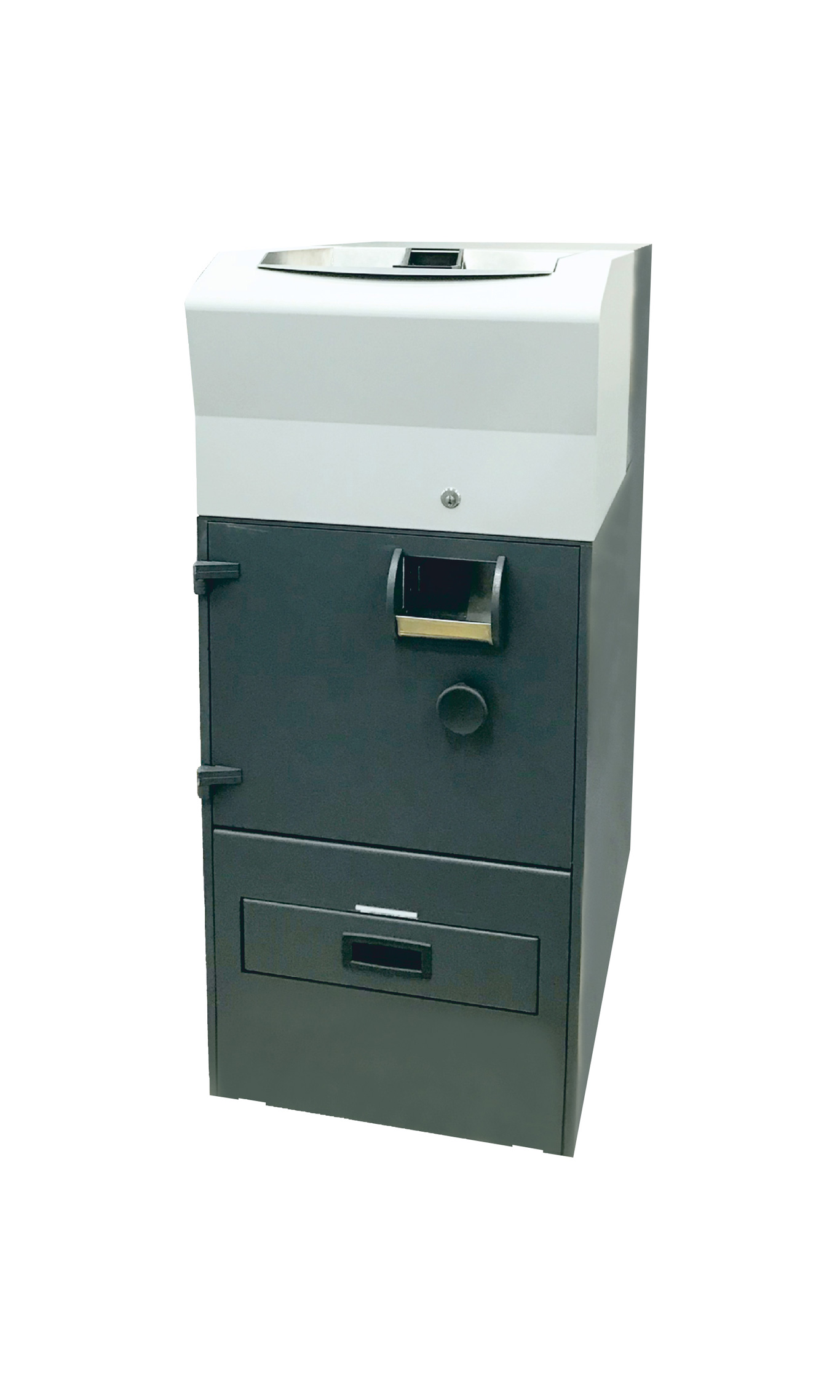

HIGH CAPACITY COIN RECYCLER

The CDS804 is an all-new high capacity, high performance coin recycler from CIMA. lt’s the perfect solution far high volume retail, gaming and hospitality environments. With it’ s flexible sorting and dispensing options, it would suit in vending depot environments tao. When used in conjunction with one of our industry leading note recyclers, the solution significantly reduces time spent on float preparation, end-of-day cashing up and reconciliation. .

DEPLIANT

CD5804 FEATURES:
• Deposit speed: 10 coins per second mixed coin)
• Dispense speed: 48 coins per second
• Input tray capacity: 1,000 coins (mixed)
• Recycling capacity: 31,000 Euro coins
• 9 x coin hoppers
• 1 x€0,01; 1 x€0,02; 1 x€0,05; 1 x€0.1 O; 1 x€0,20; 1 x€0.50; 1 x€1; 1 x€2
• Up to 8 x recycling denominations
• Compatible with CAOS and C-Link


CDS804 FULL FEATURES:
• Storage pickup (CIT): 6,000 coins in a tray
• Total capacity: 37,000 Euro coins
• External overflow in plastic bags – 8kg
Optionals:
• Customizable coin till on request
• High capacity mixed coin till (no compartments)
• 15″ PC/touch screen
• 3″ thermal receipt printer on a bracket

Capacity may vary according to currency

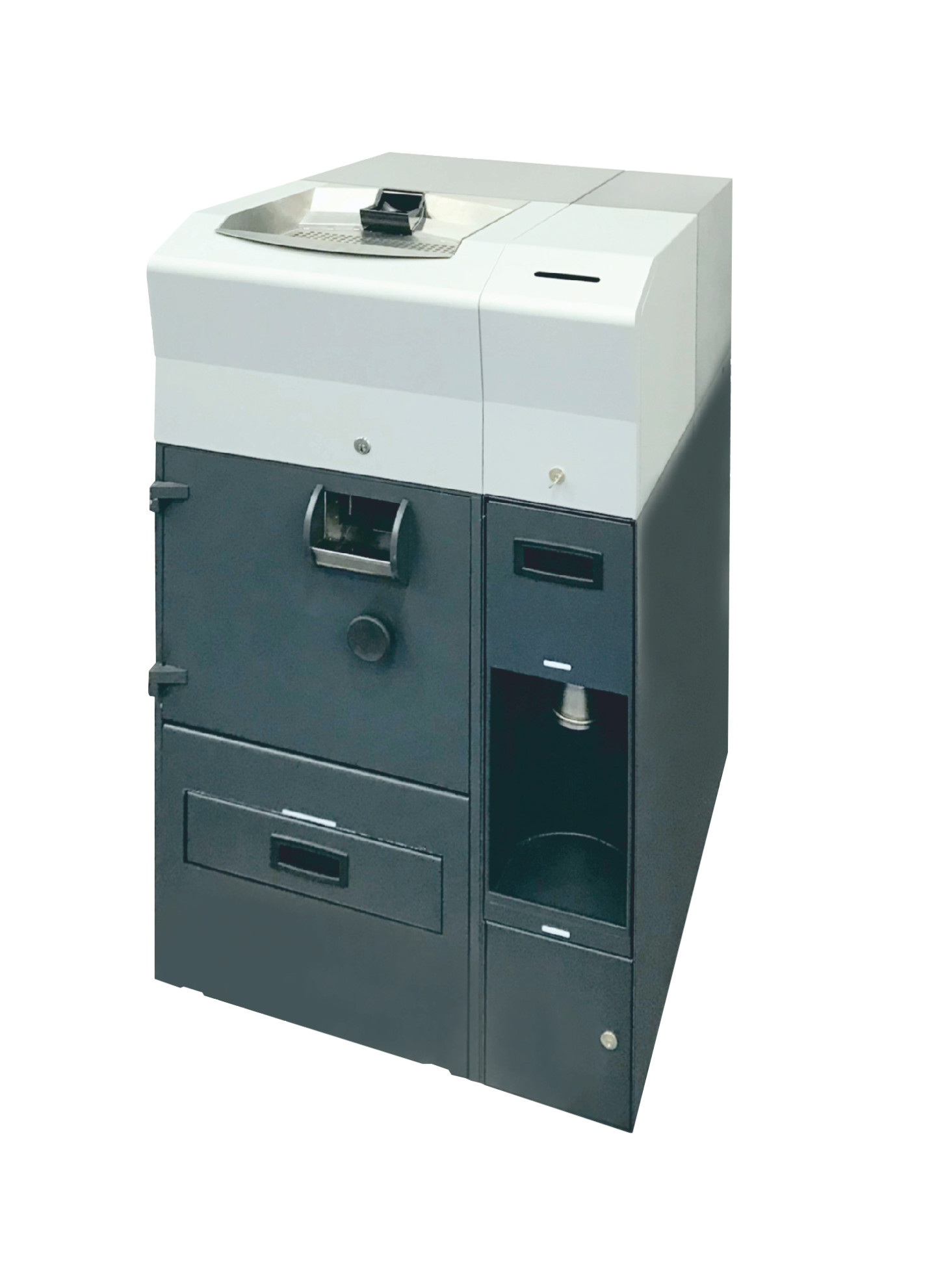

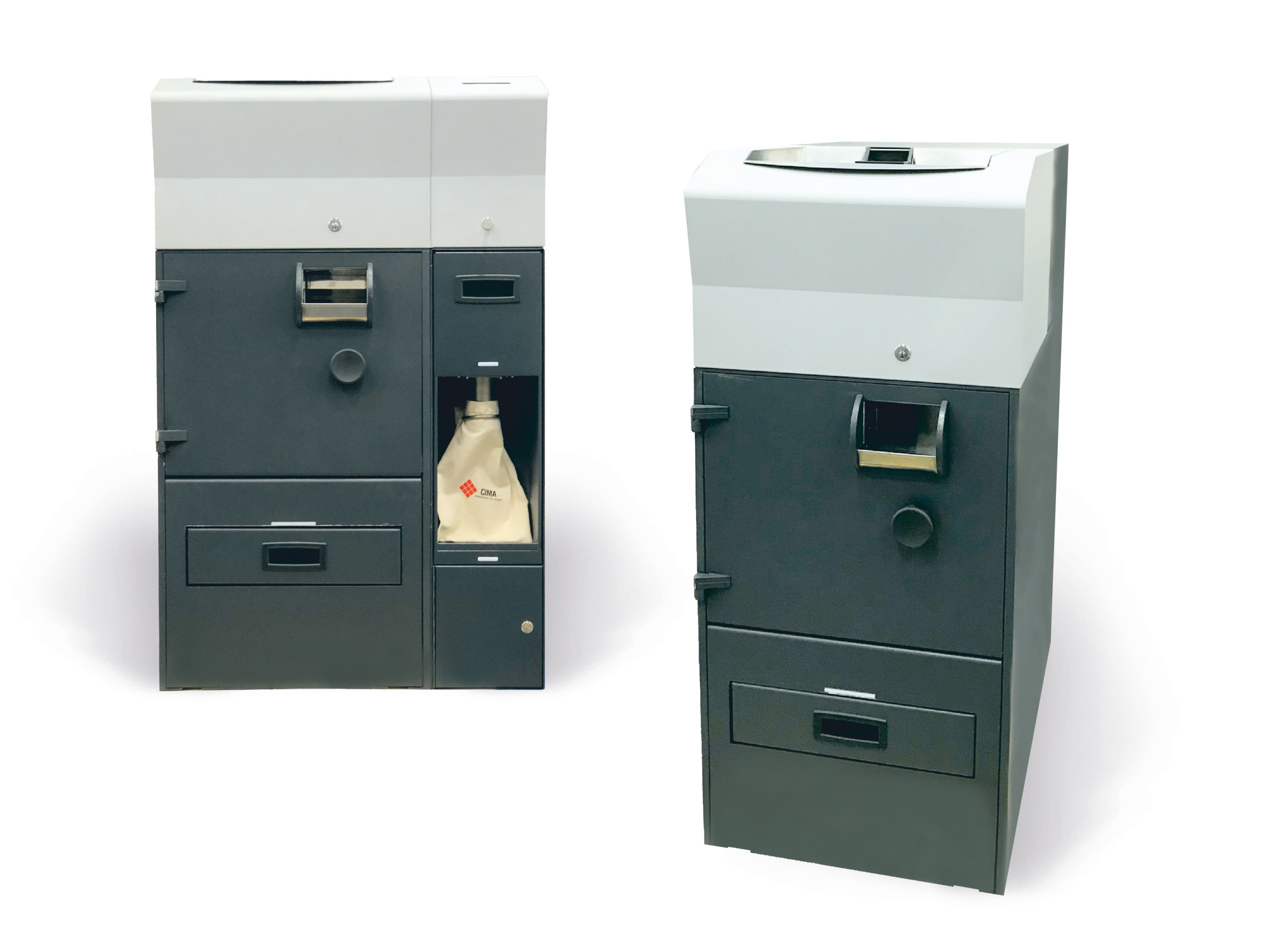

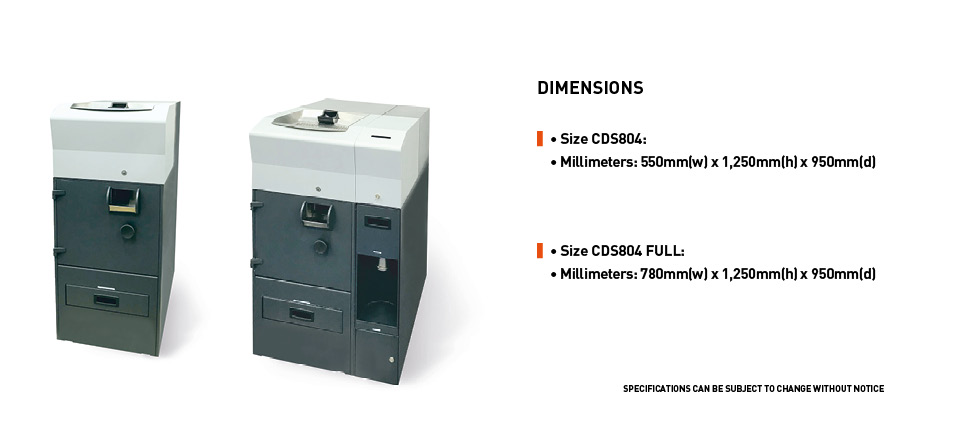

CDS804 AND CDS804 FULL

The CDS804 FULL is an additional configuration that allows single denomination bulk dispense of coins into bags without having to open the safe area of the machine. lt allows also the traditional overflow function. Each bag can hold up to 8kg. In coin intensive environments, this feature reduces frequent CIT visits to remove surplus coins.
