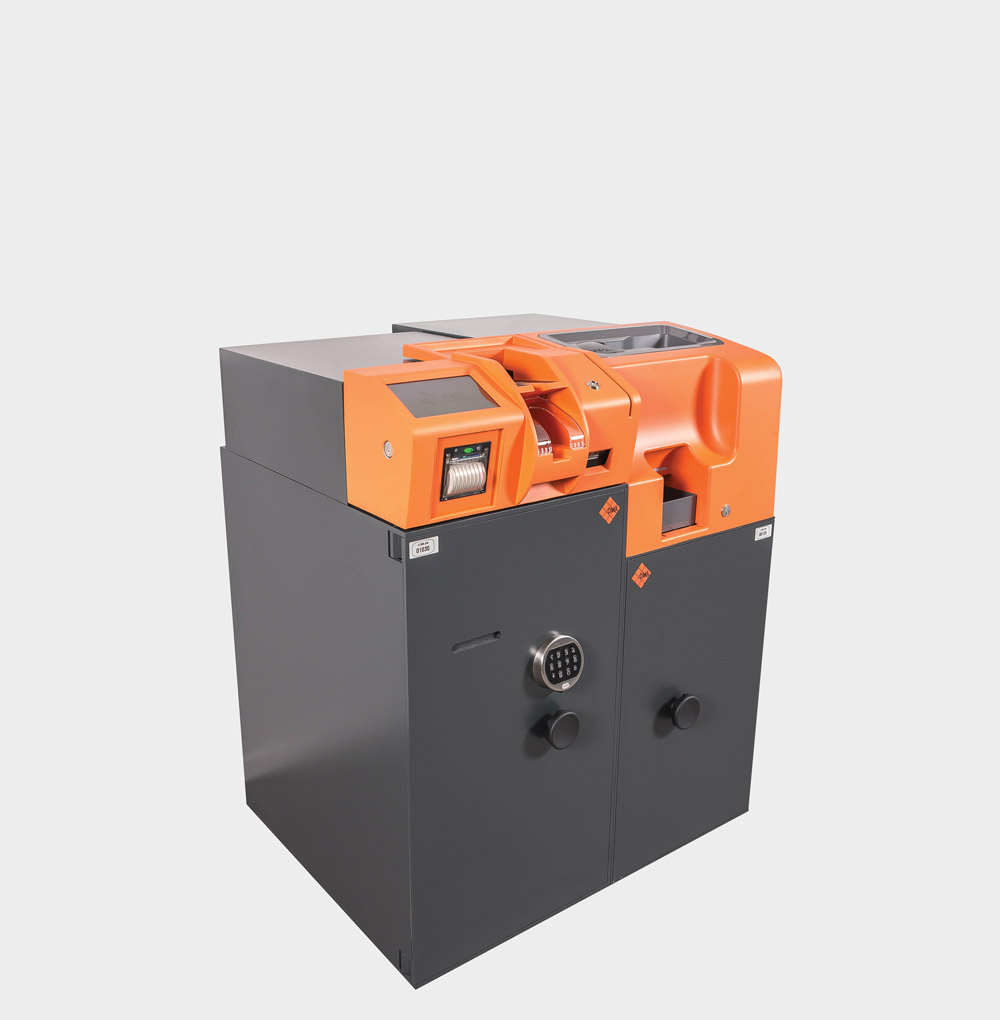

SDM 500
SMALL DEPOSIT MACHINE

SDM 500 represents the perfect solution for retail back office. A small and smart, but high performing deposit unit, it is the right solution to meet any of your needs.

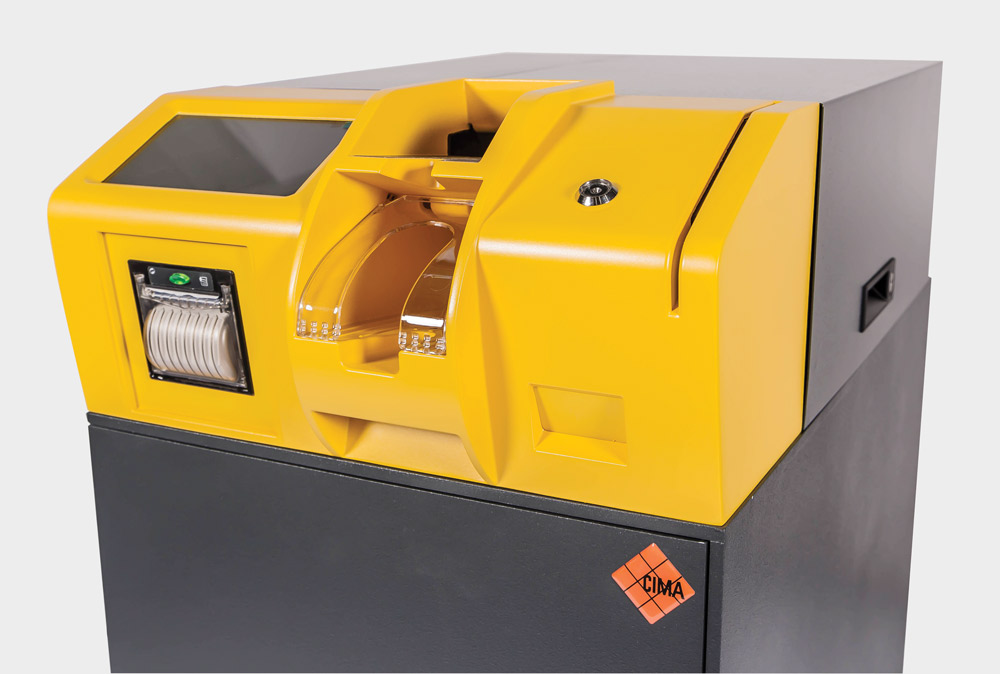

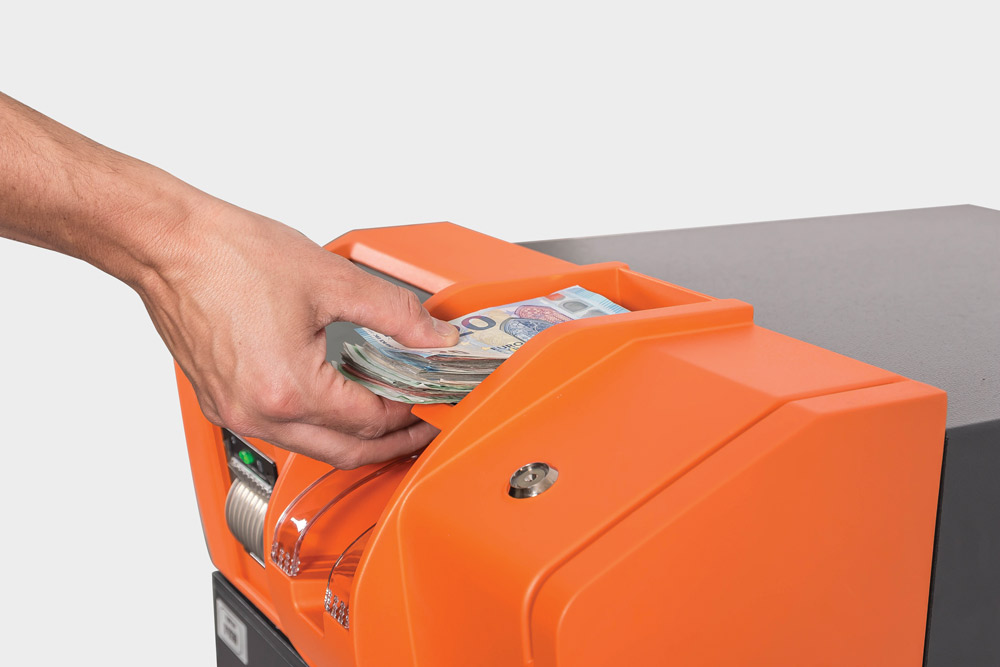

The extremely compact top plate is made of an input tray which contains up to 200 banknotes at a time with continuous feeding, a simple and functional notes’ transport, an exit tray, a top cover customizable in colour and the BV5000 authenticity sensor, manufactured by CIMA in compliance with the regulations of the main Central Banks (Euro currency included).
The BV5000 bill validator is a full-image sensor, which combines the most innovative technologies on the market, offering improved functionalities and more rooms for possible customizations.
The input speed is up to 6 banknotes/sec and is ideal to manage medium cash volumes.
A user-friendly interface completes the work: the operator identifies himself through the Dallas key or the card reader and follows his deposit on a touch screen, and then prints his own receipt.

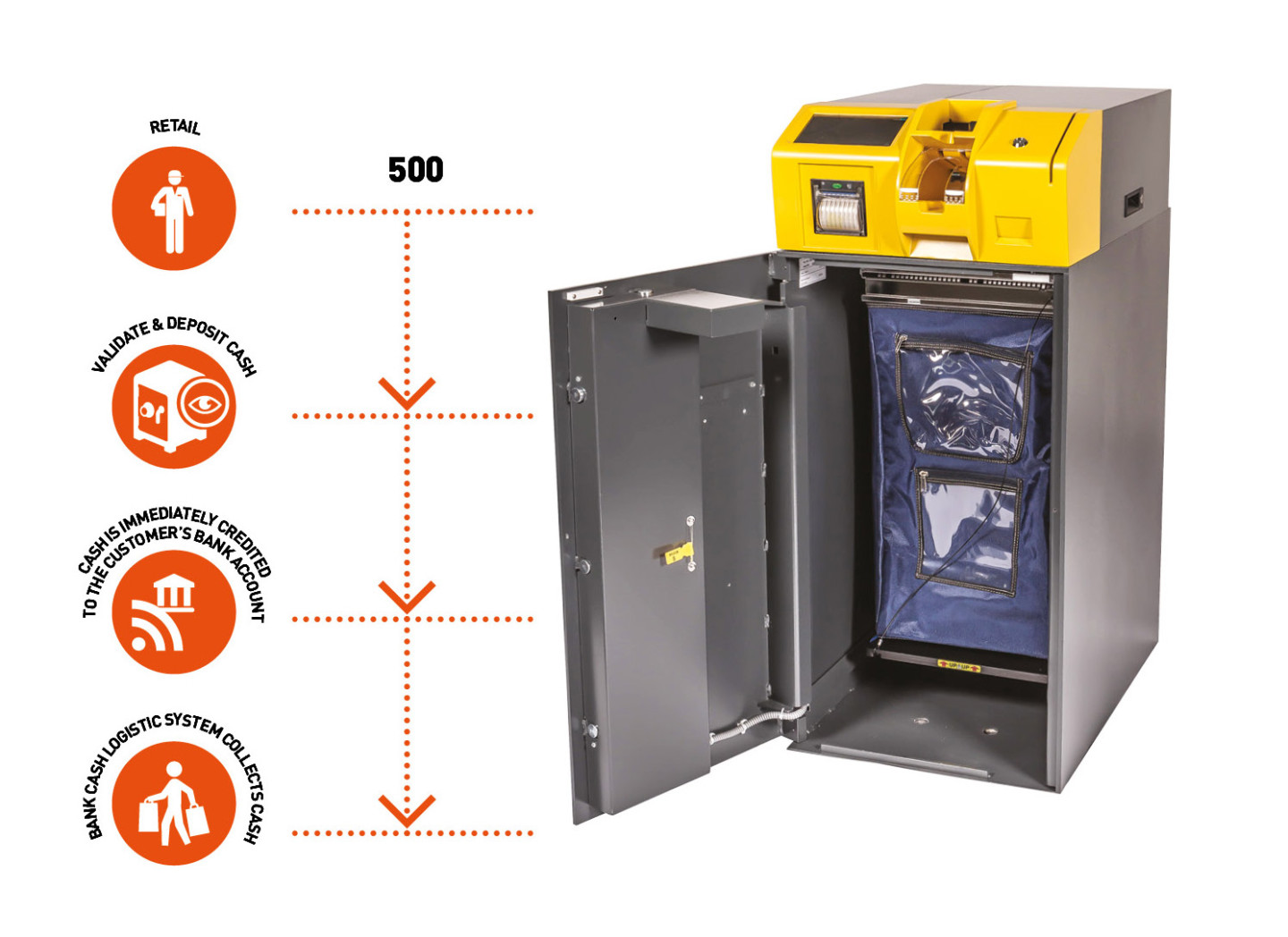

CAOS, the device operating software, when integrated to the bank system, will enable to recover all data to have the possibility of immediate crediting on one’s own account.
The rejected notes go to the exit tray, while accepted notes are dropped into the bag inside the safe.

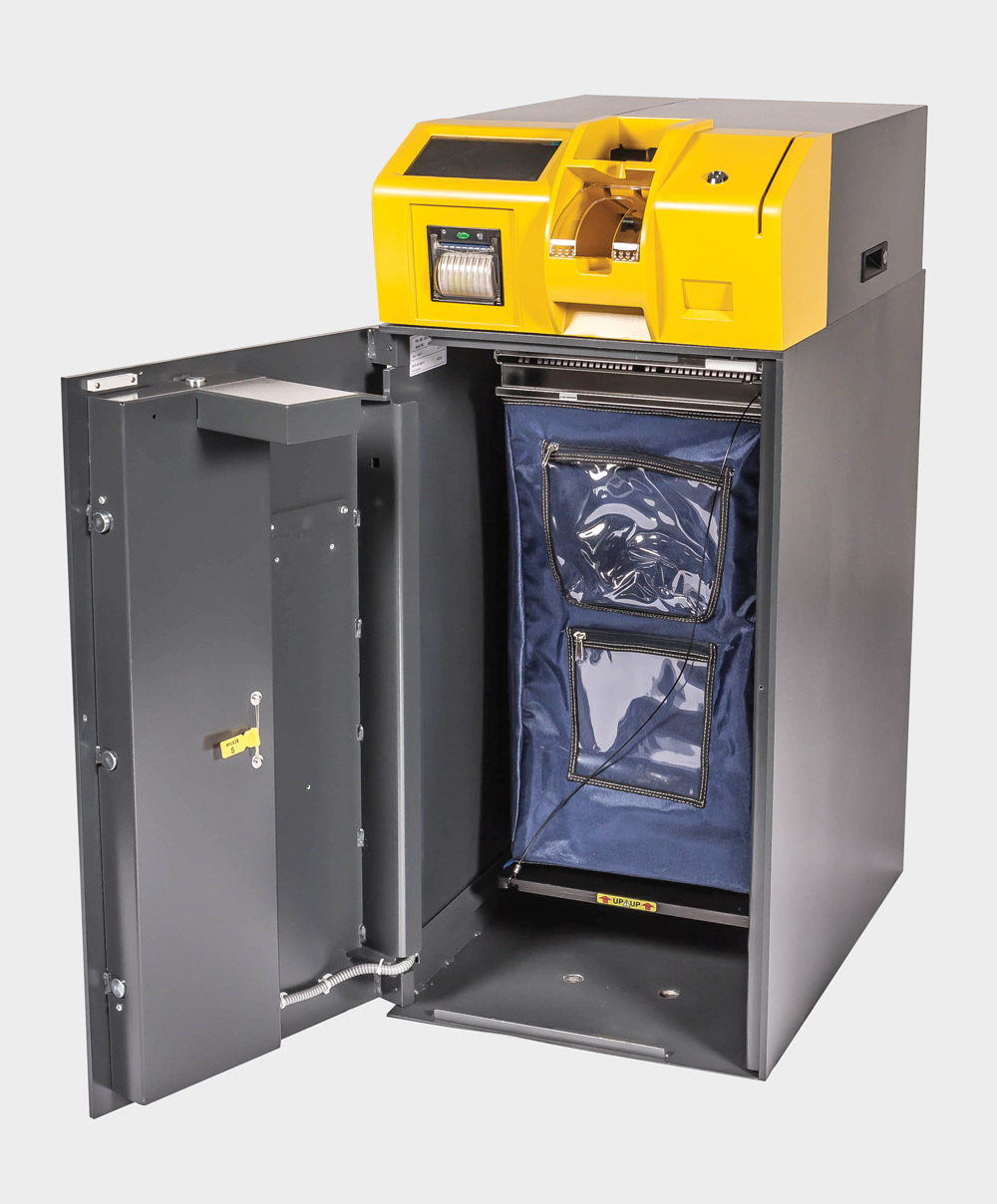

The device offers three different kinds of bags: the high capacity canvas bag containing up to 10.000 notes and locked by a cover and a manual seal, the free fall heat-sealing disposable bag containing up to 8.000 notes, and finally the heat-sealing stacking bag, containing up to 3.000 notes. The big advantage of these two self-sealing bags is that they do release the safe’s opening just once they have completely sealed, thereby allowing the money collection by one individual operator, and no longer two according to the usual procedure, which results in a remarkable cost saving.
Thanks to its competitiveness and high speed, SDM 500 is perfect for the retail, gambling halls, amusement parks and gas stations, chemist’s shops, cinemas, public transport companies and any time you want to cut off the money counting (in particular with the stacking solution) and optimize the CIT service.
SDM 500 is the ideal solution to optimize the back-office of a small-retailer, having up to 10 cash points.

DEPLIANT

CASH DEPOSIT

• High speed: up to 6 notes/second
• Full-image authenticity sensor
• Disposable bag: heat-sealing bag and stacking bag
• In the version with heat-sealing bag and stacking bag the safe can be opened just once the bag has self-sealed
• Availability of the receipt removable by the CIT in the heat-sealing bag
• High capacity canvas bag (10.000 banknotes)
• Possibility of remote management through the C-Link platform

SAFE AVAILABLE IN
Steel StrongBox (8mm),
UL291 24 H, CEN L, CEN III, CEN IV

WEIGHT
8mm: 200 Kg
UL291: 270 Kg
CEN L: 320 Kg
CEN III: 400 Kg
CEN IV: 400 Kg

The weight can change depending on the bag type.

ELECTRICAL FEATURES
Voltage 90-240 VAC
Frequency 50-60 Hz
Power input process 500 W

CONNECTIONS
RS232 serial port, USB, Ethernet

DEPOSIT CAPACITY
• Up to 10.000 banknotes with canvas bag *

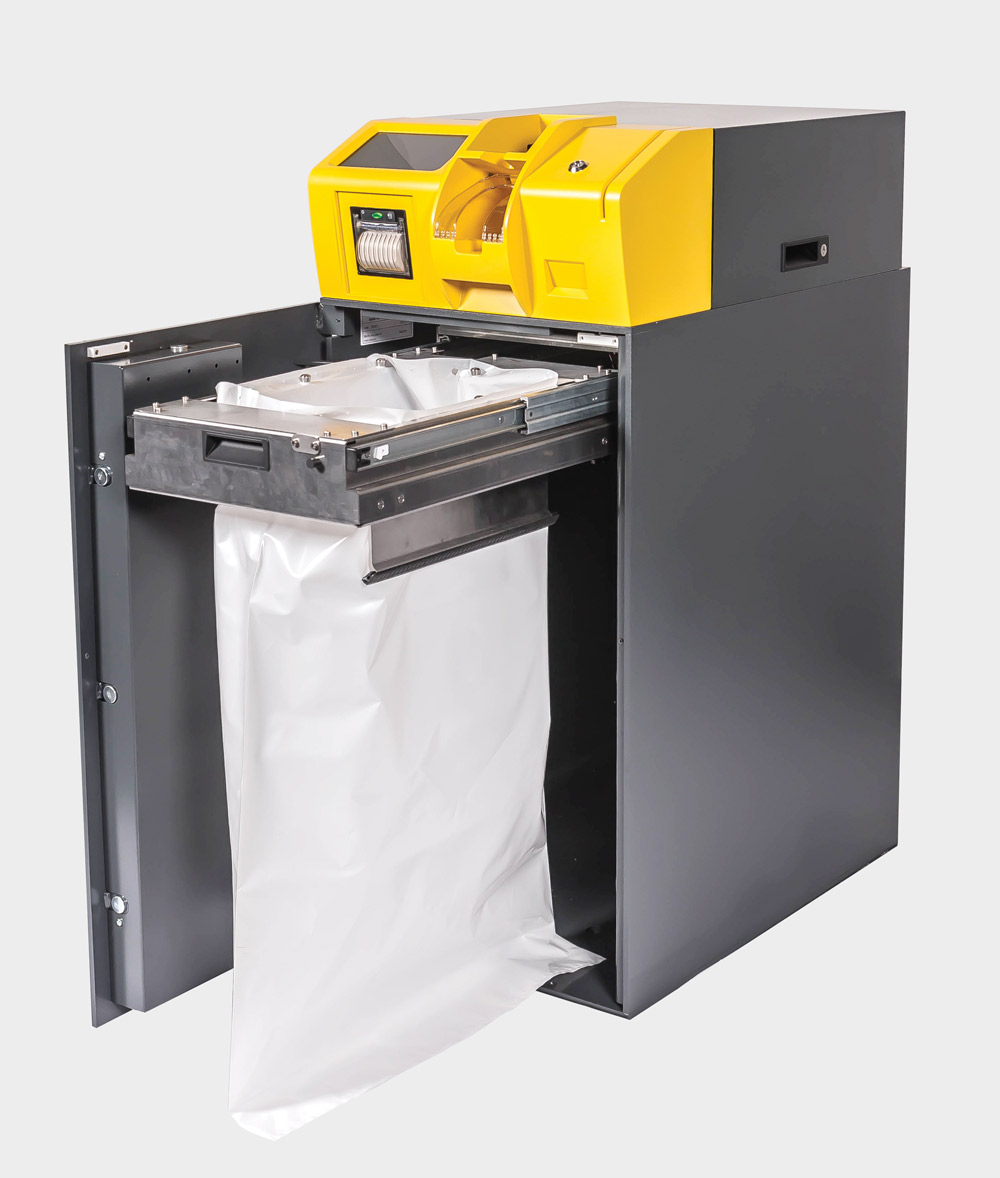

• Up to 8.000 banknotes with free fall heat-sealing bag

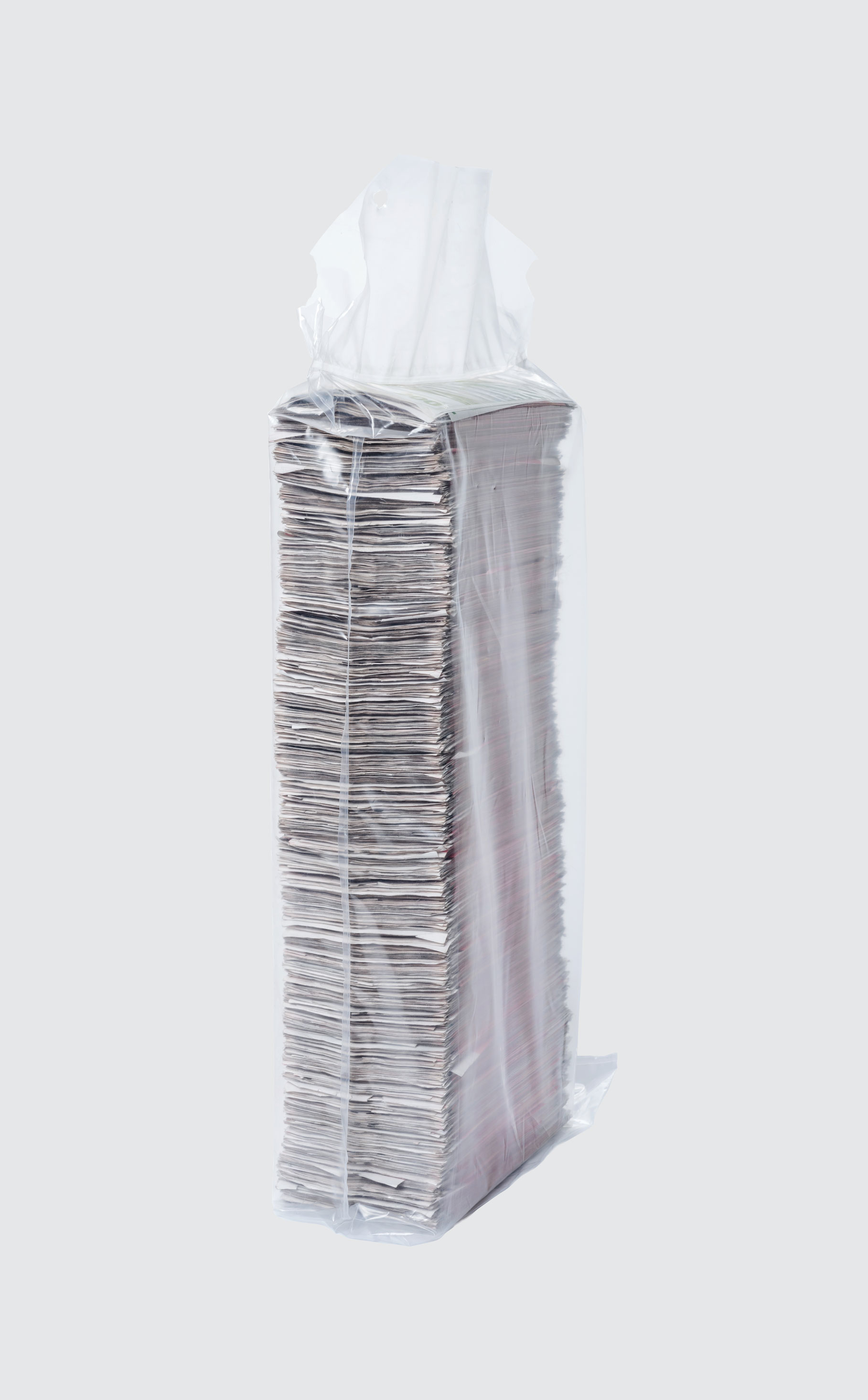

• Up to 3.000 with stacking bag
* the maximum capacity can be reached with the shaker attachment

Variabale bag capacity depending on: safe type, quality of the banknotes, right opening of the bag and bag model.

BILL VALIDATOR
• Full-image sensor
• Authenticity in compliance with the regulations of the main Central Banks
• Possibility of multi-currency operation

DEPOSIT SPEED
Up to 6 notes/s

SIZE OF THE PROCESSED BANKNOTES
(standard configuration)
Length: from 100 mm to 190 mm
Width: from 60 mm to 85 mm

THE INTERFACE INCLUDES
• Thermal printer 58 mm
• Colour Touch screen TFT 7”
• PC board
• Hard disk
• Dallas key

OPTIONS
• UPS
• Card reader
• Additional bags

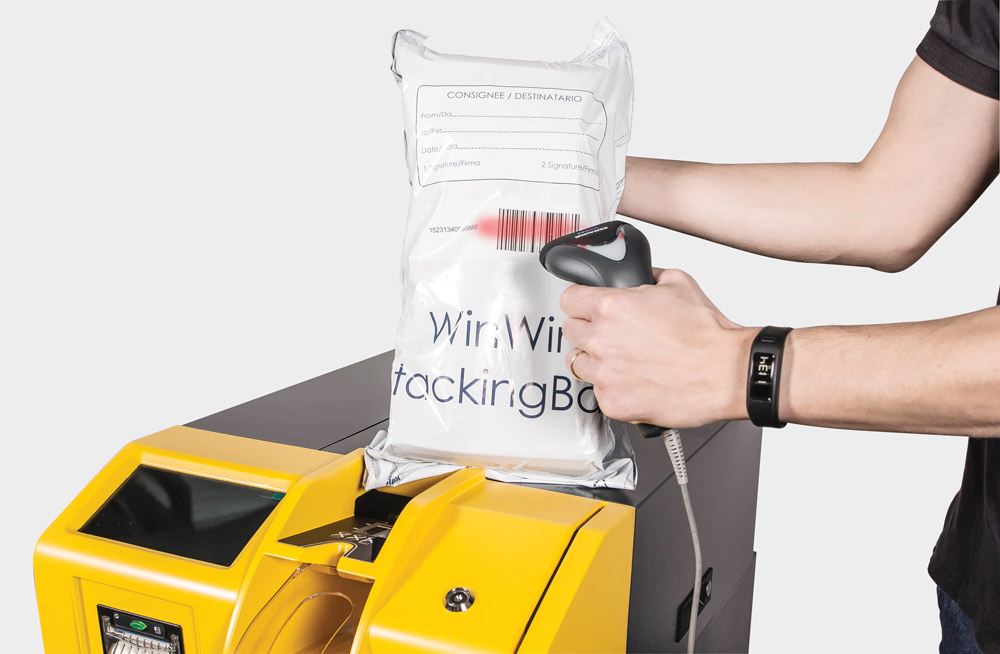

• Bar-code integrated

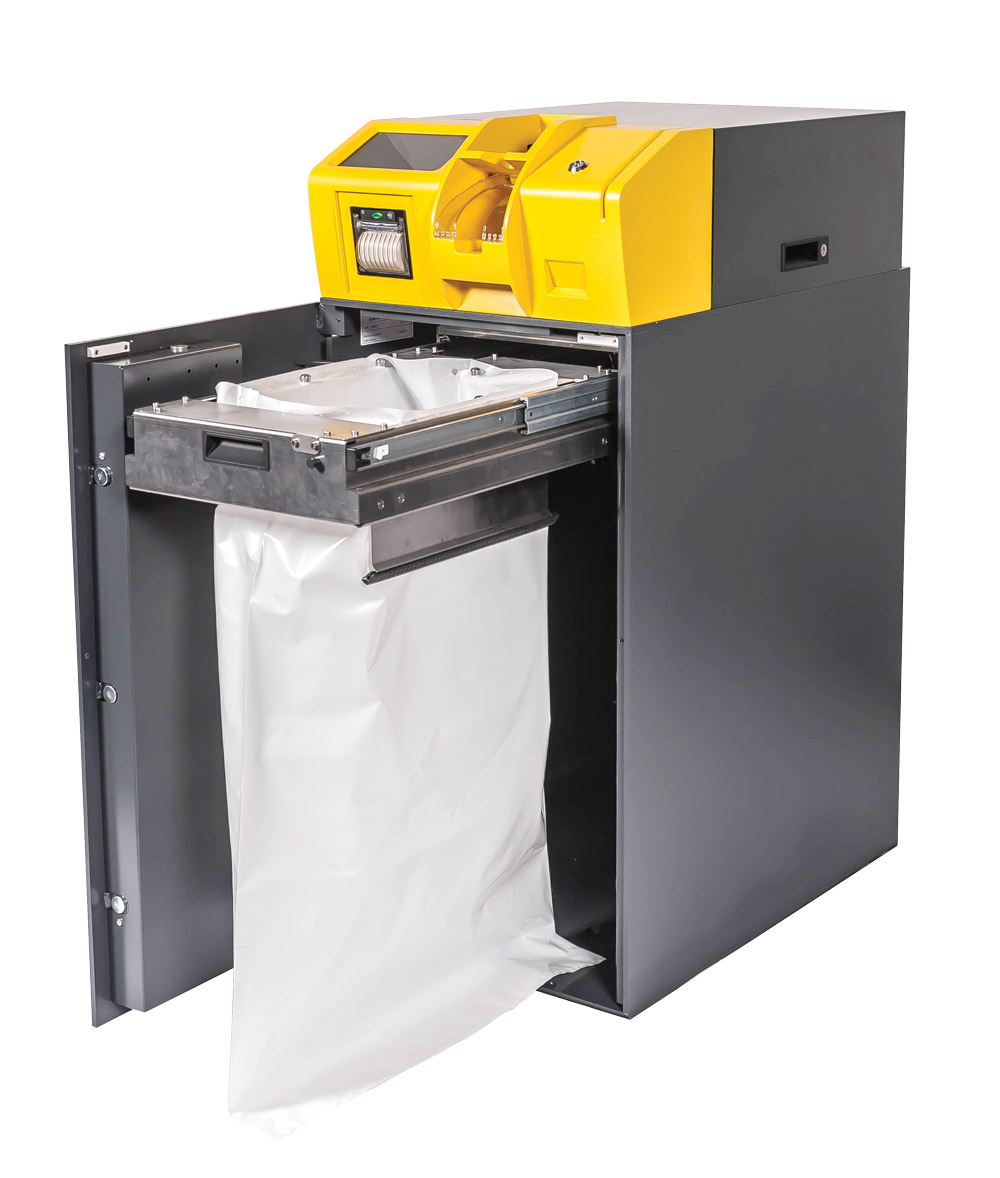

SDM 500H

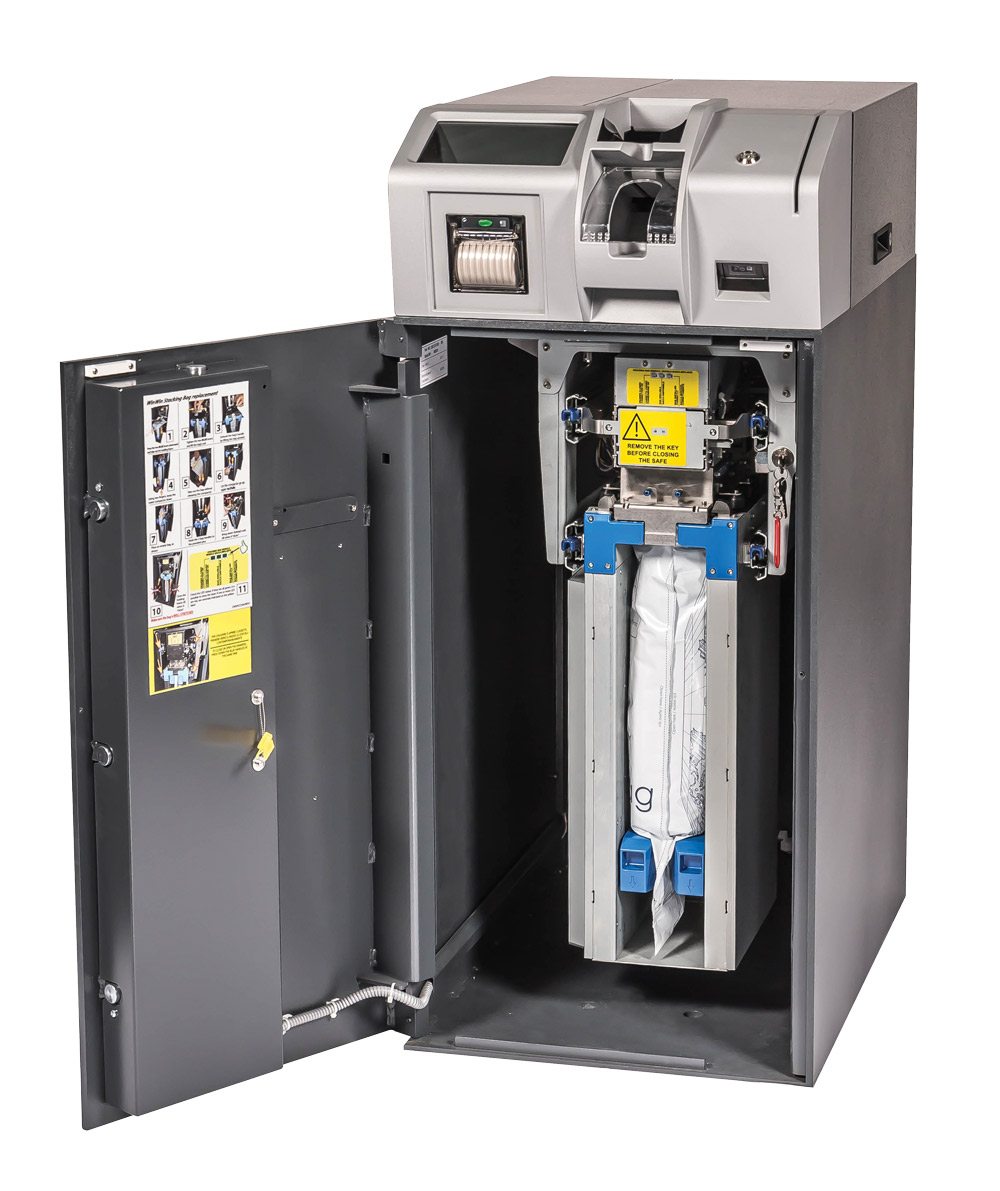

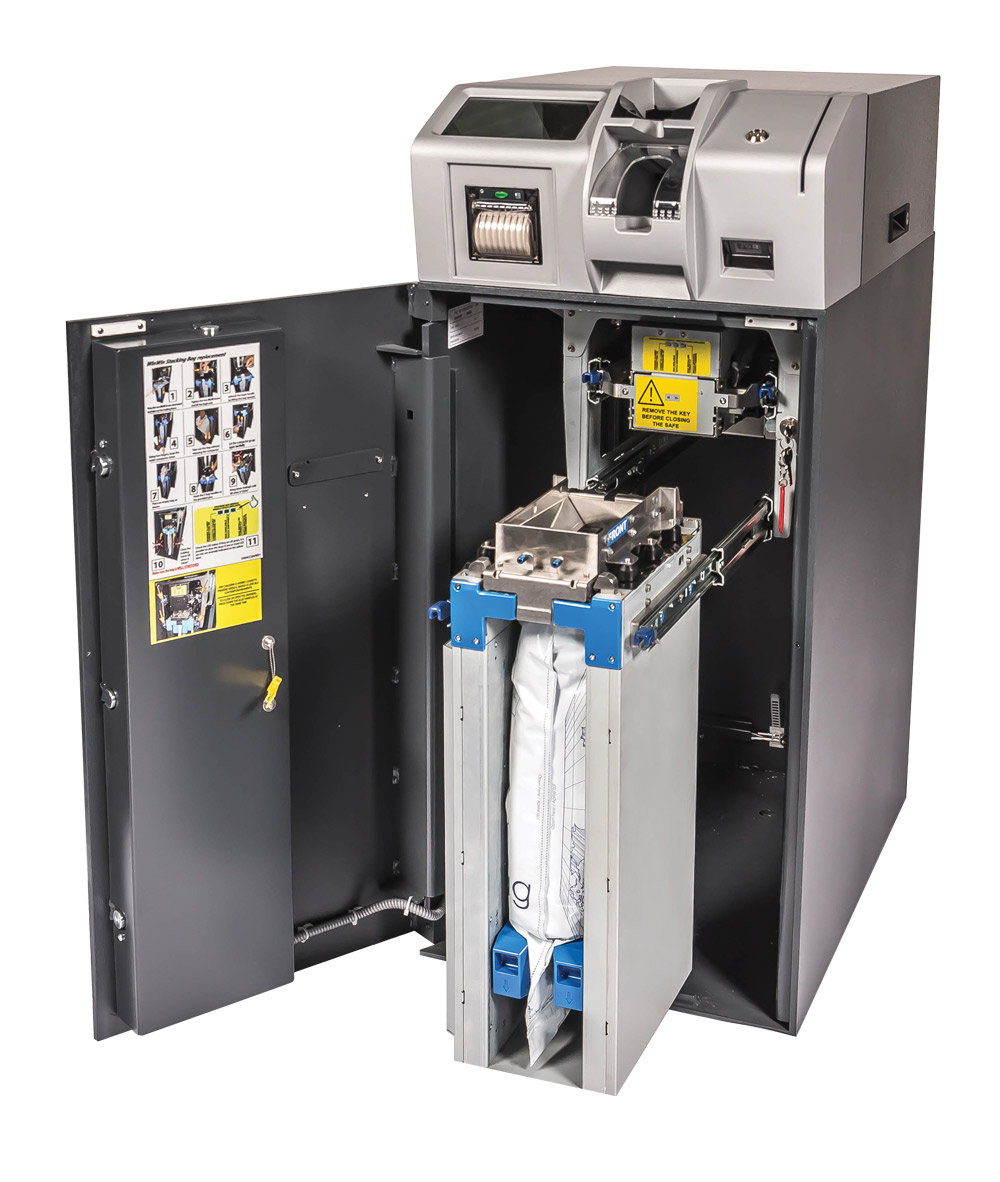

SDM 500S

C-LINK IS THE INNOVATIVE SOFTWARE PLATFORM FOR THE REMOTE MANAGEMENT OF THE CASH HANDLING DEVICES.

This software gives a further added value to CIMA devices, thanks to different services that allow to increase the level of information about one’s own fleet of machines and simplify their management at the same time.

The functionalities provided by the platform are:
• Remote distribution of the firmware updates as well as the recognition sensor: this allows to have a fleet of machines always updated in a short time, without requiring any interventions in the field.
• Remote monitoring of the status of the devices in real time: this enables to identify possible problems from a remote post, allowing an improvement of the quality of the help-desk service with more certain and detailed information.
• Remote monitoring of the contents of the devices and of the cash handling in real time: this allows to have always a global vision of the level of use of one’s own devices through suitable reports and statistics.
• Remote management of the configuration of the devices: any configuration can be carried out from remote post with no need of on-site interventions.
• Production of the statistics about the handling of unfit banknotes according to the Central Bank current regulation.

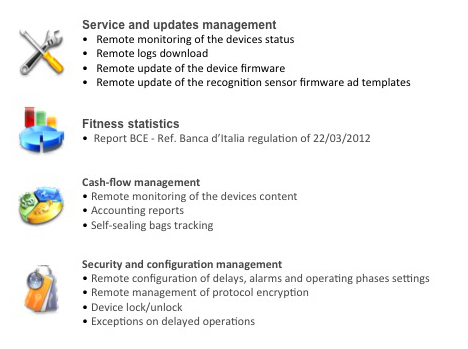

C-LINK – MODULES

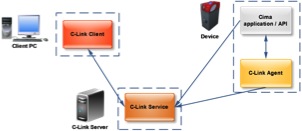

SOFTWARE ARCHITECTURE

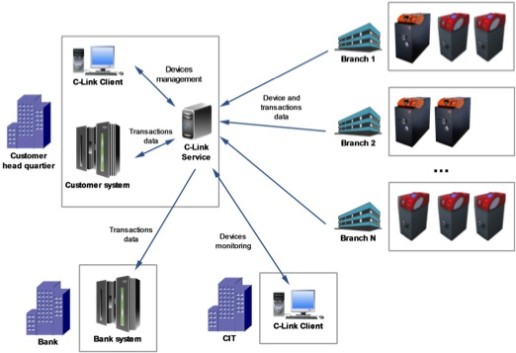

C-LINK APPLIED TO RETAIL

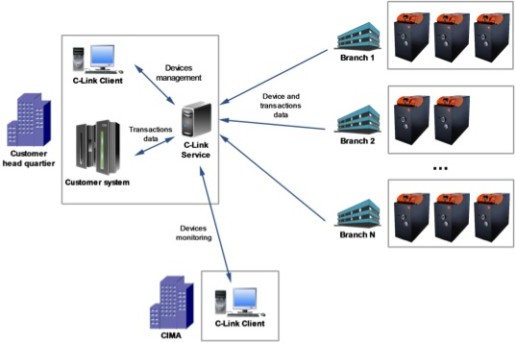

C-LINK APPLIED TO BANK

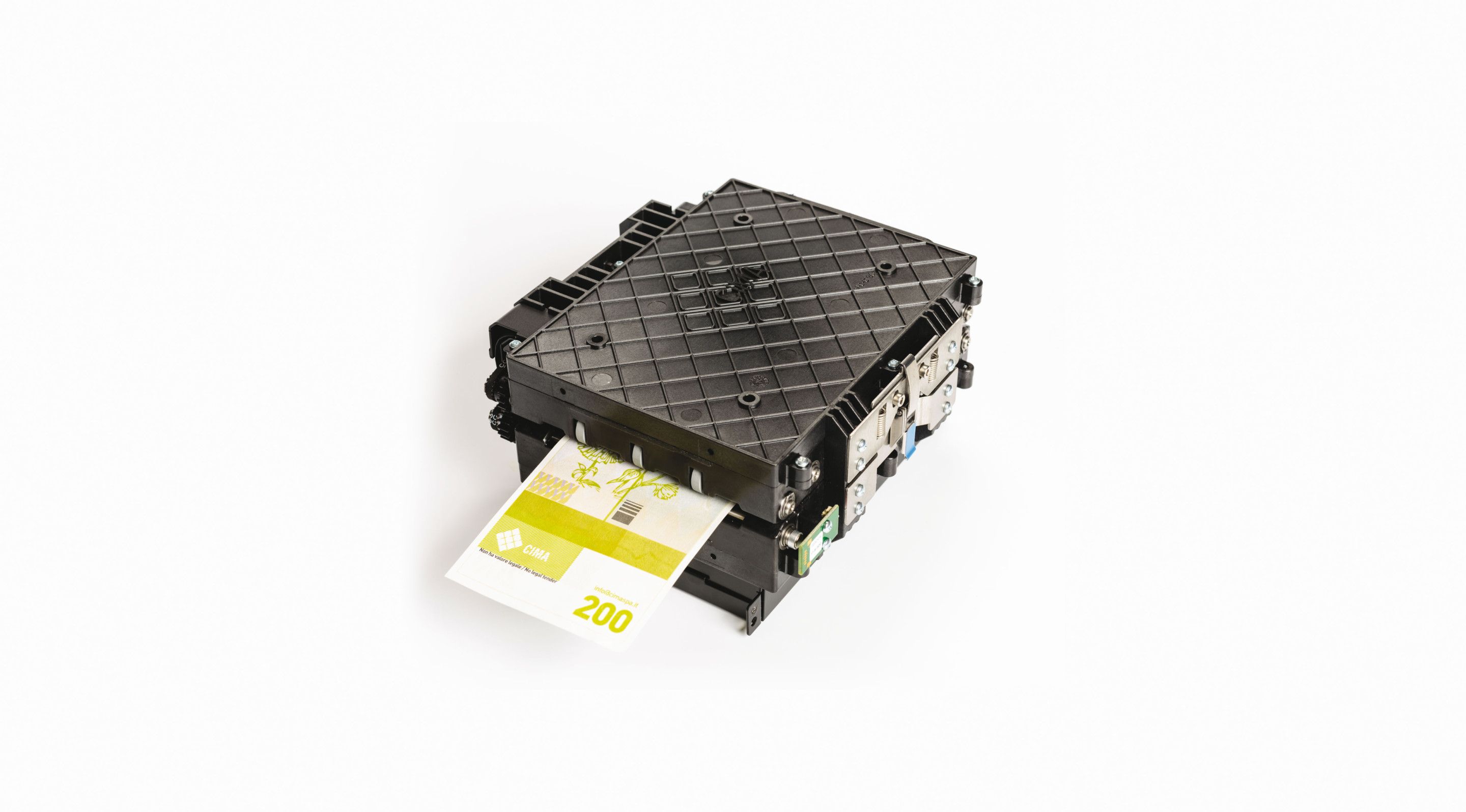

SENSOR BV5000

BV 5000 is an authenticity and fitness detector. It was born in 2011 and is fruit of CIMA R&D team. It complies with the regulations of the main Central Banks Euro currency included); the templates have been developed for many non-European currencies, as well as for tickets, vouchers and cheques. BV5000 is a full-image sensor, which combines the most advanced technologies on the market: magnetic, infrared, fluorescence, ultraviolet, visible light.
