Coin deposit and recycling system

Coins recycling unit with high capacity and high performance. It’s the ideal solution for the big retailers and for all the users who need to handle high volumes of coins.
In combination with the CDS803 a lift for drawers has been developed to improve the comfort of the user and reduce the risk of accidents. It drastically reduces the time spent in the back office for the preparation of the daily float and for the cash collection at the end of the day and, through online connection, optimizes the retail/bank/CIT cooperation.
In combination with the SDM504 or the AST7008 (banknotes recycling devices), it allows a complete management of the cash process.

DEPLIANT

DEPOSIT
10 coins / s, coins mixed

INPUT TRAY CAPACITY
1000 coins, coins mixed

DISPENSE
48 coins / s

STORAGE RECYCLING
18,000 coins, 8 coin hoppers

NUMBER OF DENOMINATIONS TO RECYCLE
up to 9

STORAGE PICKUP (CIT)
4,000 coins in a tray

TOTAL CAPACITY
22,000 coins

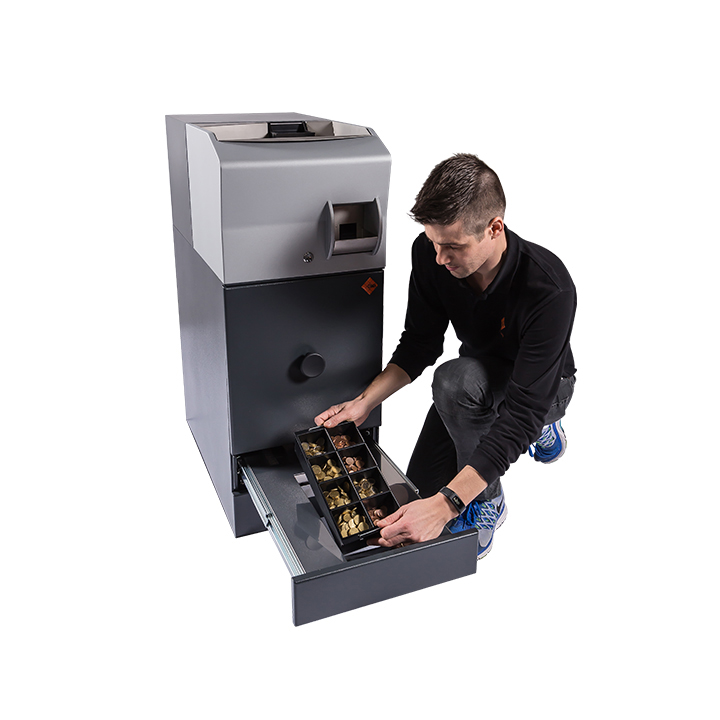

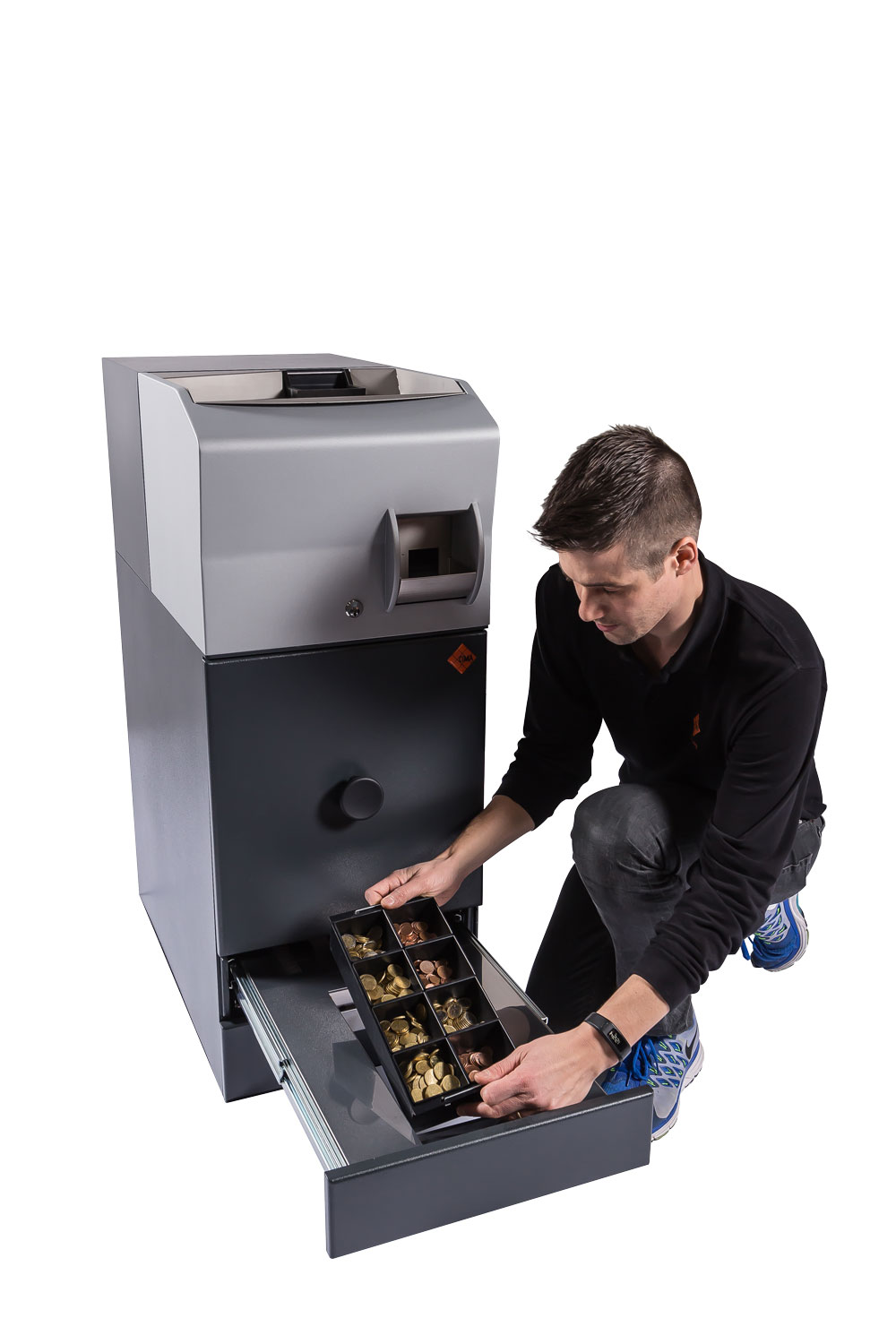

AUTOMATIC LIFT (optional)

Coin till customizable on request.
Pre-arranged to fit Pc touch screen and printer.


FEATURES (LIFT)

CYCLE TIME
12 seconds

TOTAL WEIGHT OF THE COINS
7 kg / 15.4 lb

For a complete cash automation, CDS 803 can be combined with the notes recycling unit SDM504.

W. 440mm x D. 765mm x H. 1100mm
W. 17,3″ x D. 30,1″ x H. 43,3″

(LIFT)

W. 505mm x D. 765mm x H. 835mm
W. 20″ x D. 30,1″ x H. 32,9″

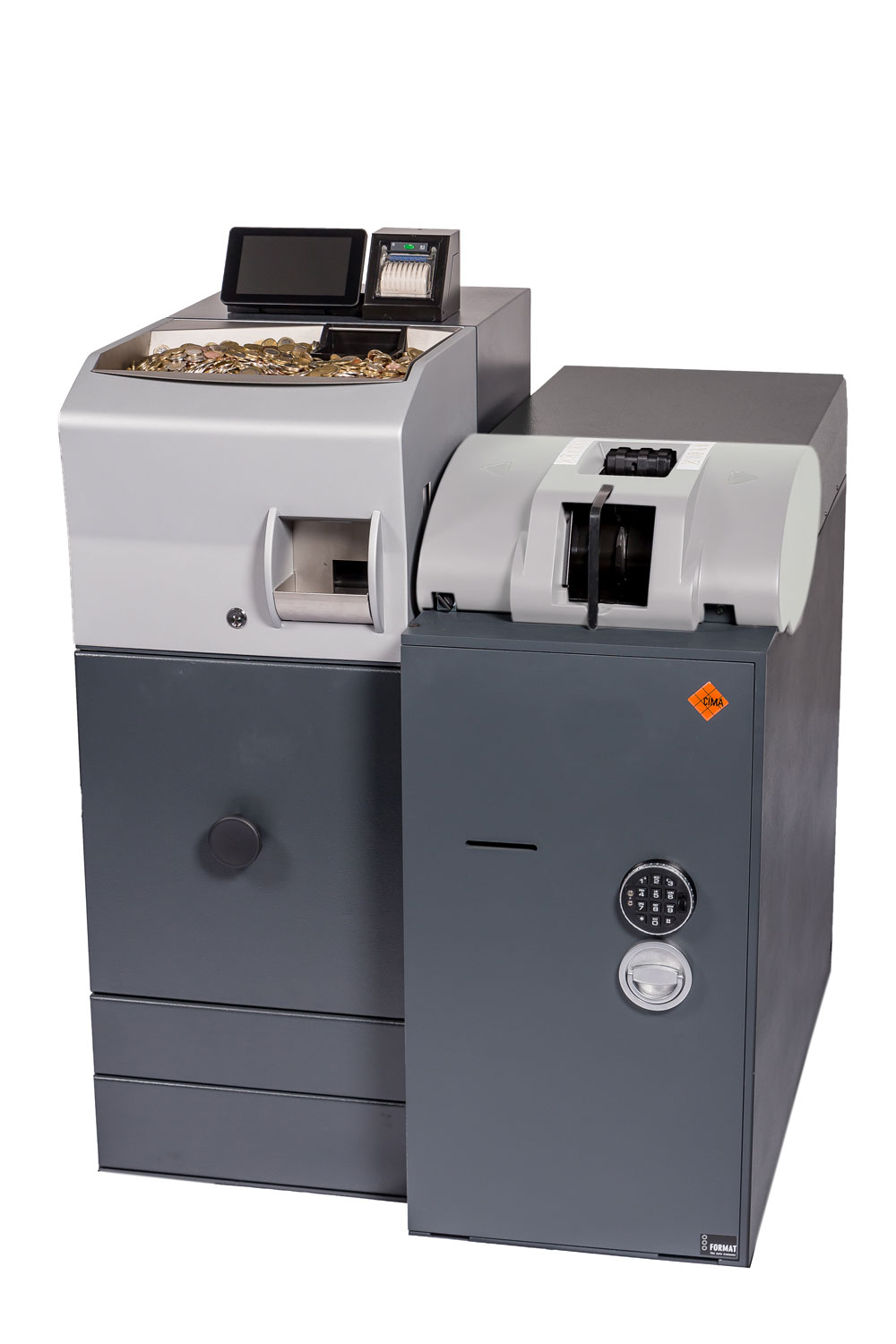

AST7008 and CDS803

Deposit and recycling solution
Highest capacity recyclingn

AST7008 and CDS 803 banknote/coin recycling combination. It’s the note/coin recycling solution with the highest capacity (8 drums with 700 banknotes each and 18.000 coins in recycling); it’s therefore suitable for big retailers, mega
stores, amusement parks and the sites where cash is handled in high volumes. The perfect tool for the preparation of the cashiers daily float and for the deposits at the end of the day. It ensures security, speed and a valuable reduction of
the cash management costs.

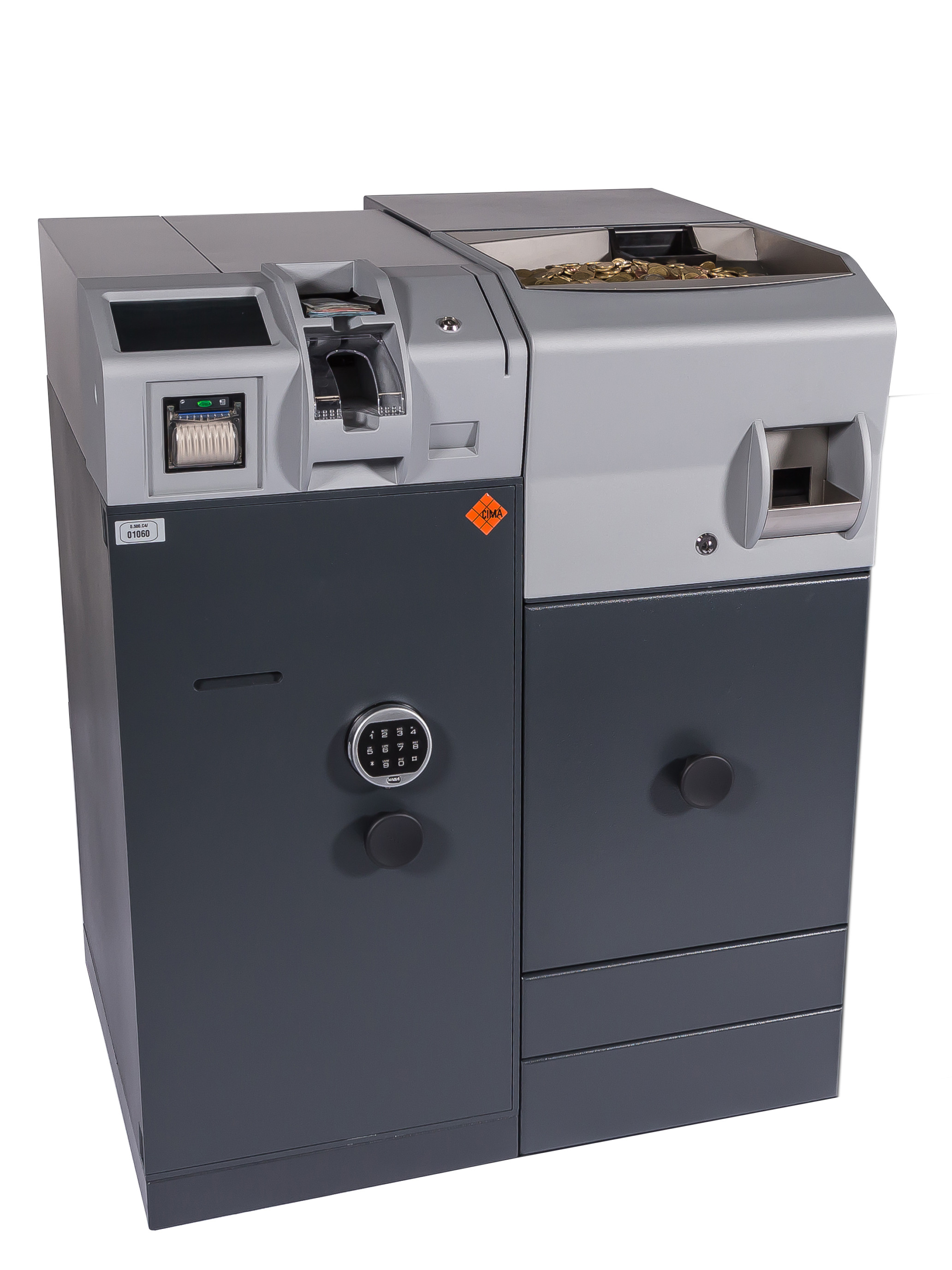

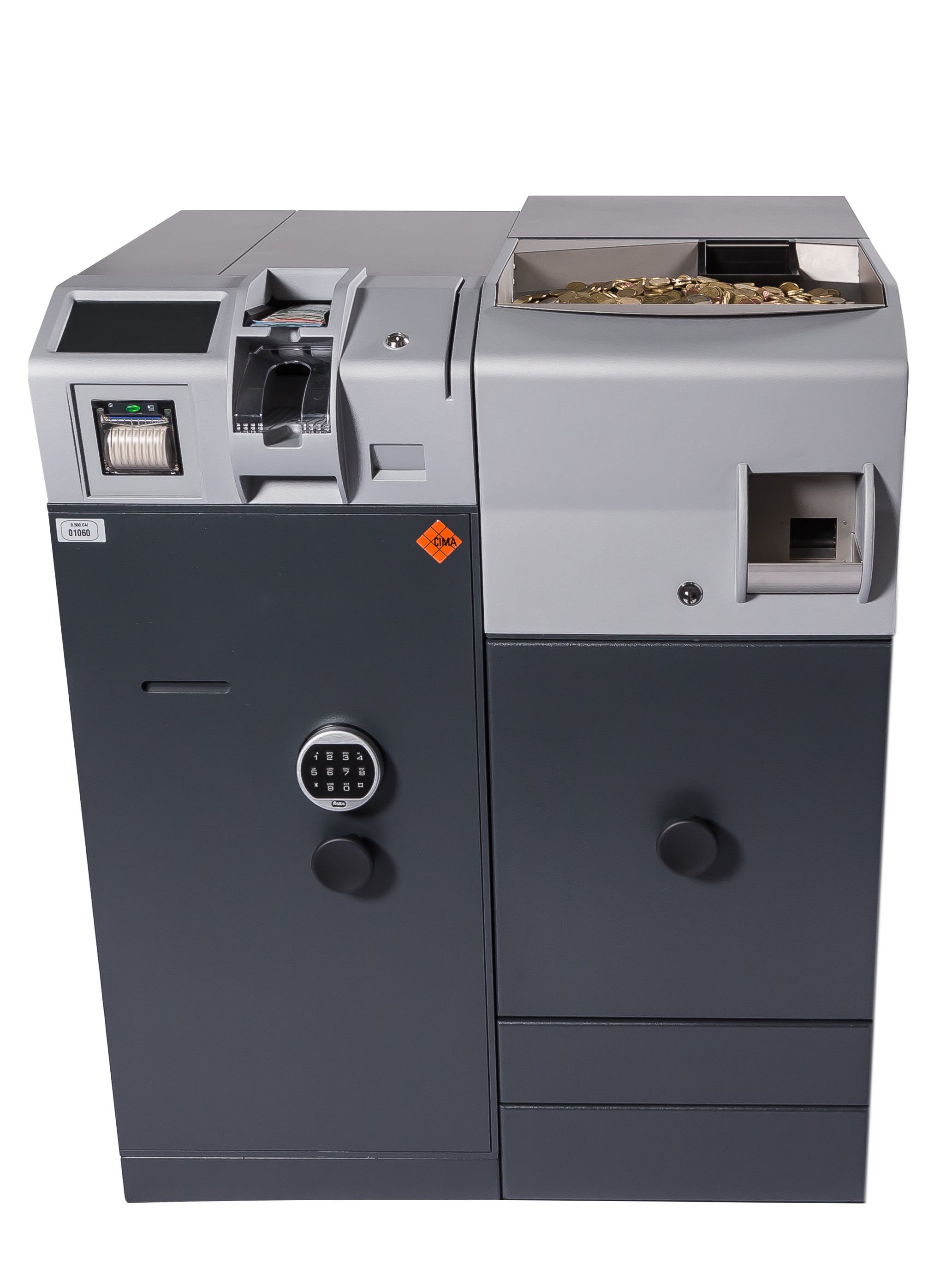

SDM504 and CDS803

Deposit and recycling solution
High capacity recycling
SDM504 and CDS803 banknote/coin recycling combination.
High capacity and high performance coin and note recycling and deposit solution. It’s the optimal solution for the big retailers and for all the users who need to handle high volumes of cash, enabling the optimization of all the cash processes. In combination with the CDS803 a lift for drawers has been developed to improve the comfort of the user and reduce the risk of accidents.
