Coin deposit and recycling system

High performance coins recycling unit studied for small and medium size shops, gambling halls, chemist’s, tobacconist’s, cinemas, public transport companies, gas stations…
It drastically reduces the time spent in the back office for the preparation of the daily float and for the cash collection at the end of the day and, through online connection, optimizes the retail/bank/CIT cooperation.

DEPLIANT

ACCEPTANCE
up to 50 coins

PROCESSING SPEED
3 coins/sec

COINS RECYCLING CAPACITY

8 hoppers: 2 € x 220 pcs; 1 € x 250 pcs; 0,50 € x 220 pcs;
0,20 € x 290 pcs; 0,10-0,05 € x 360 pcs; 0,02-0,01 € x 540 pcs;

  • – Mixed coins

OVERFLOW STORAGE

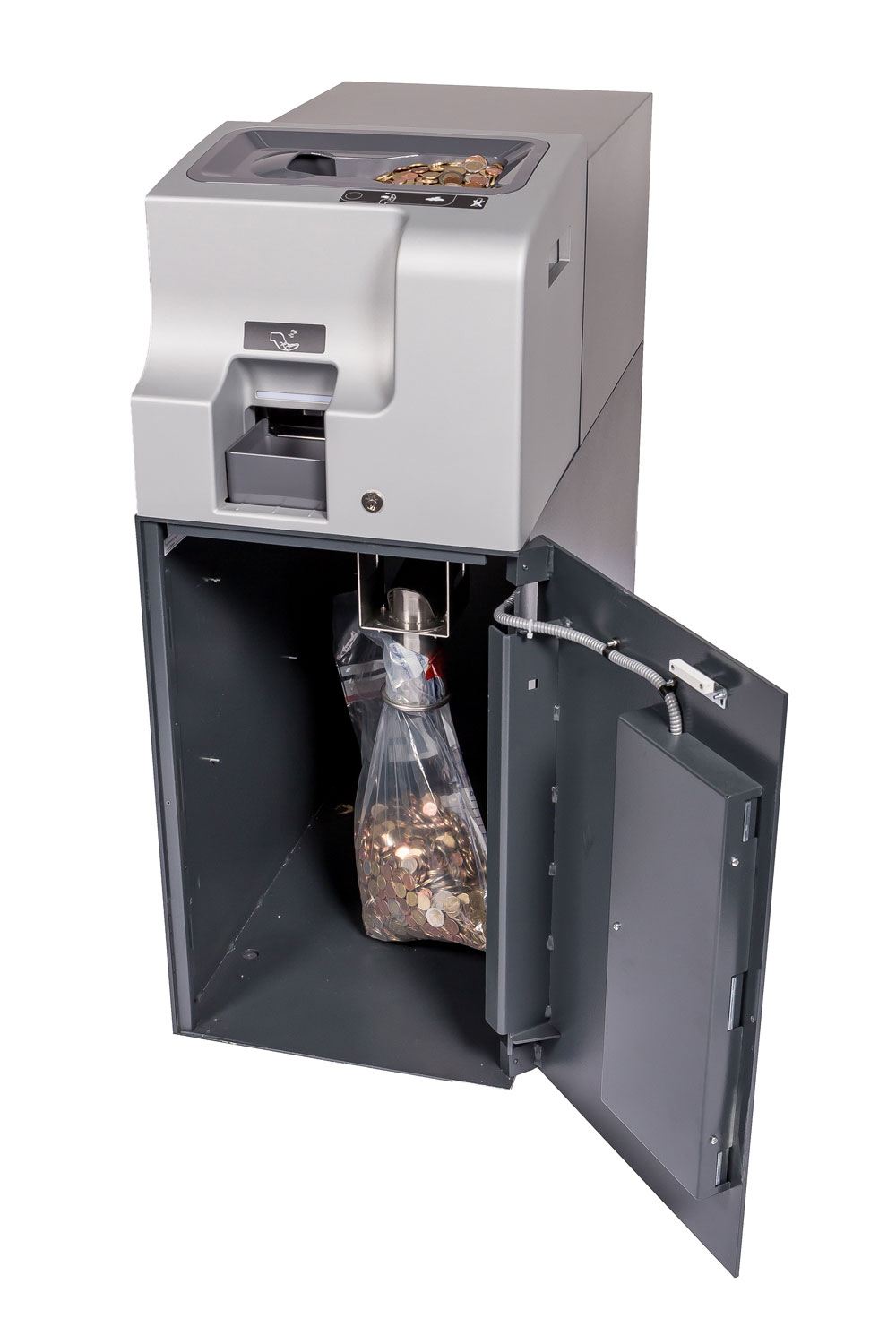

One plastic bag, with capacity up to 15 kg/33 lb;

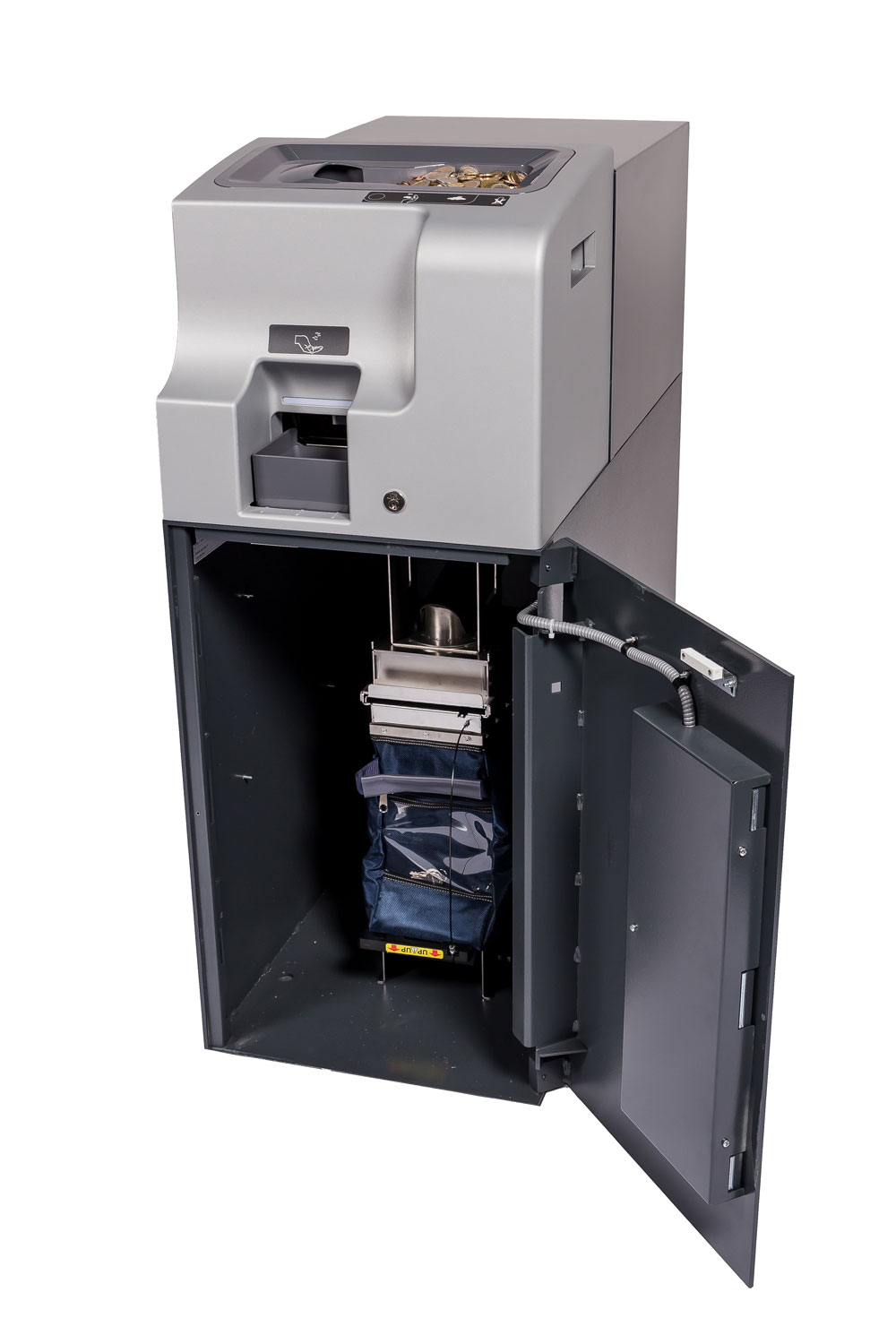

One canvas bag up to 18 kg/39,7 lb;

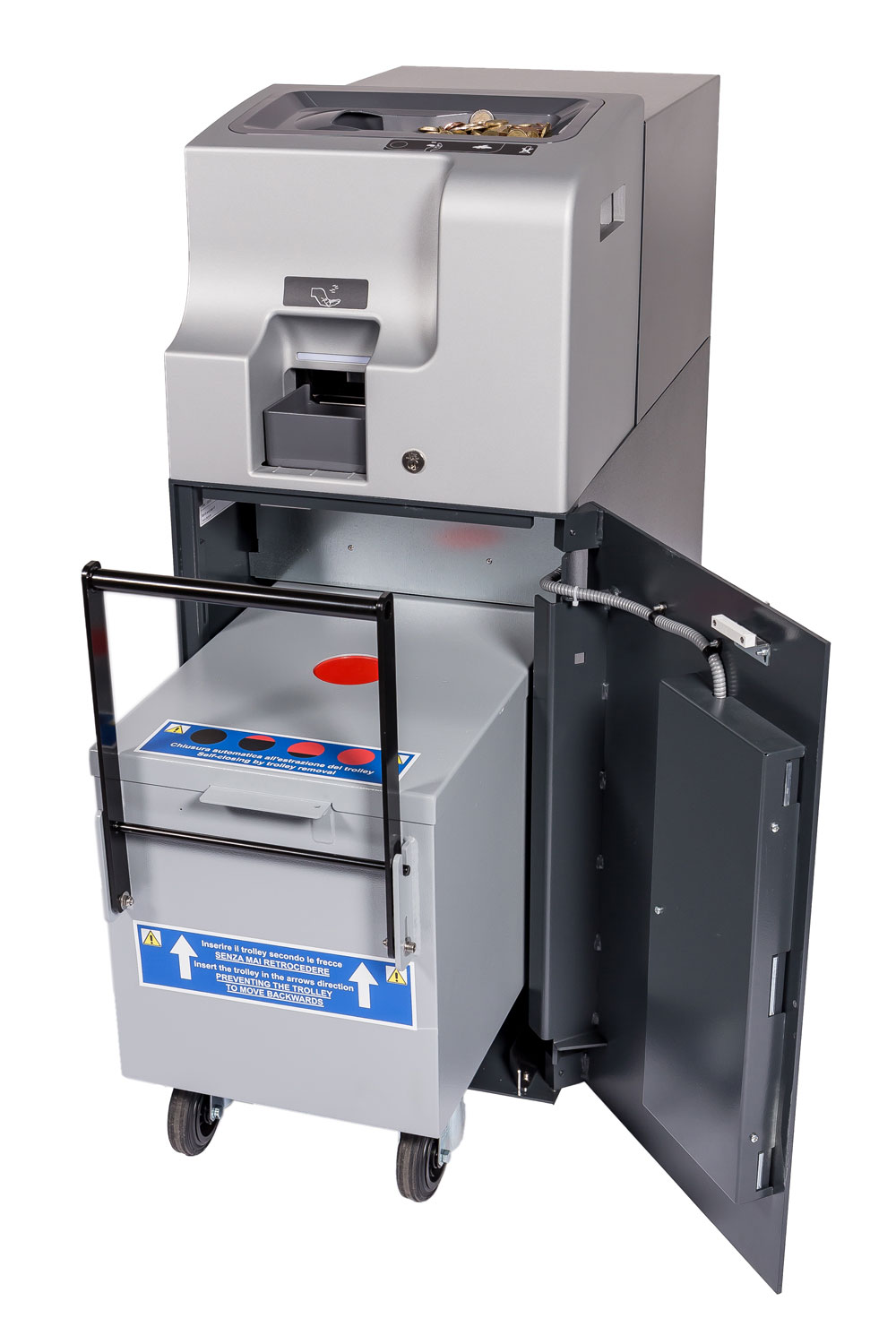

Coin trolley up to 30.000 pcs:
130 kg/287 lb depending on the coin typology.

WITHDRAWAL SPEED
up to 5 coins/sec;

DISPENSING CAPACITY
50 coins;

FRONT ACCESS

SAFE STRUCTURE
5 mm;

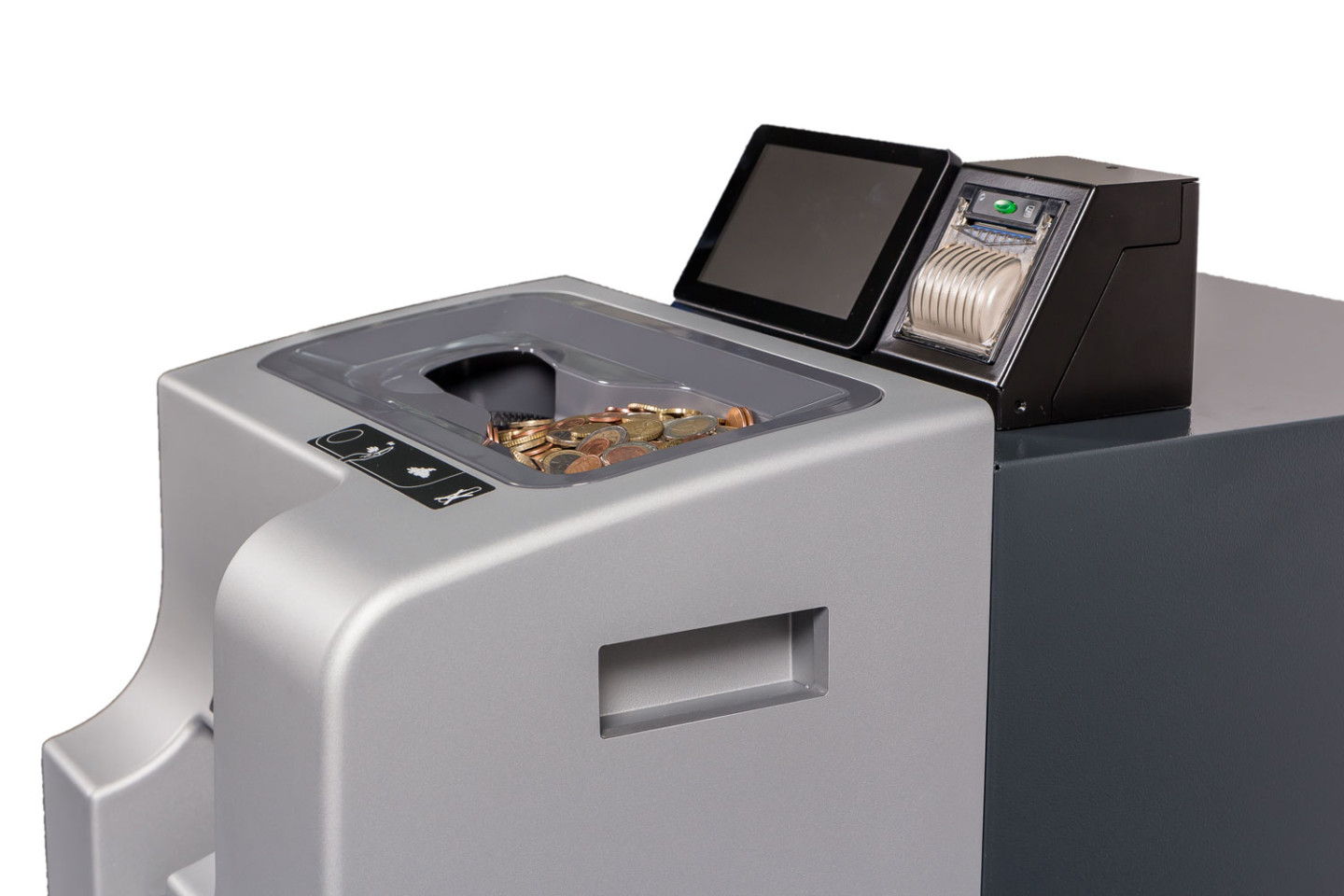

  • – Pre-arranged to fit a PC touch screen and a printer.
  • – Well designed software.
  • – CAOS and C-link platforms.
  • – XFS available.
  • – For a complete cash automation, CD5801 can be combined with the notes deposit unit SDM500.

W. 420mm x D. 770mm x H. 1041mm
W. 16,5“ x D. 30,3“ x H. 41“

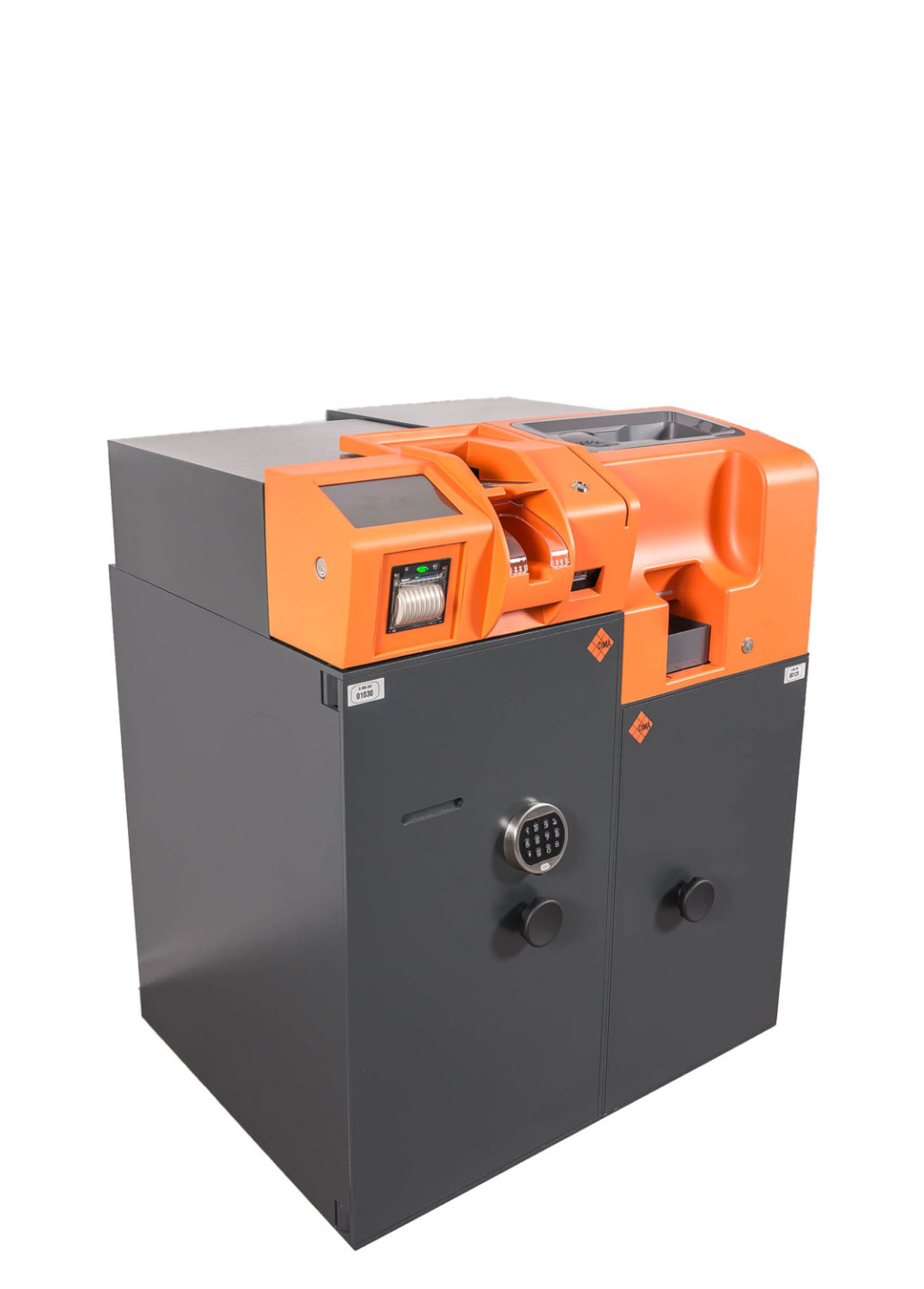

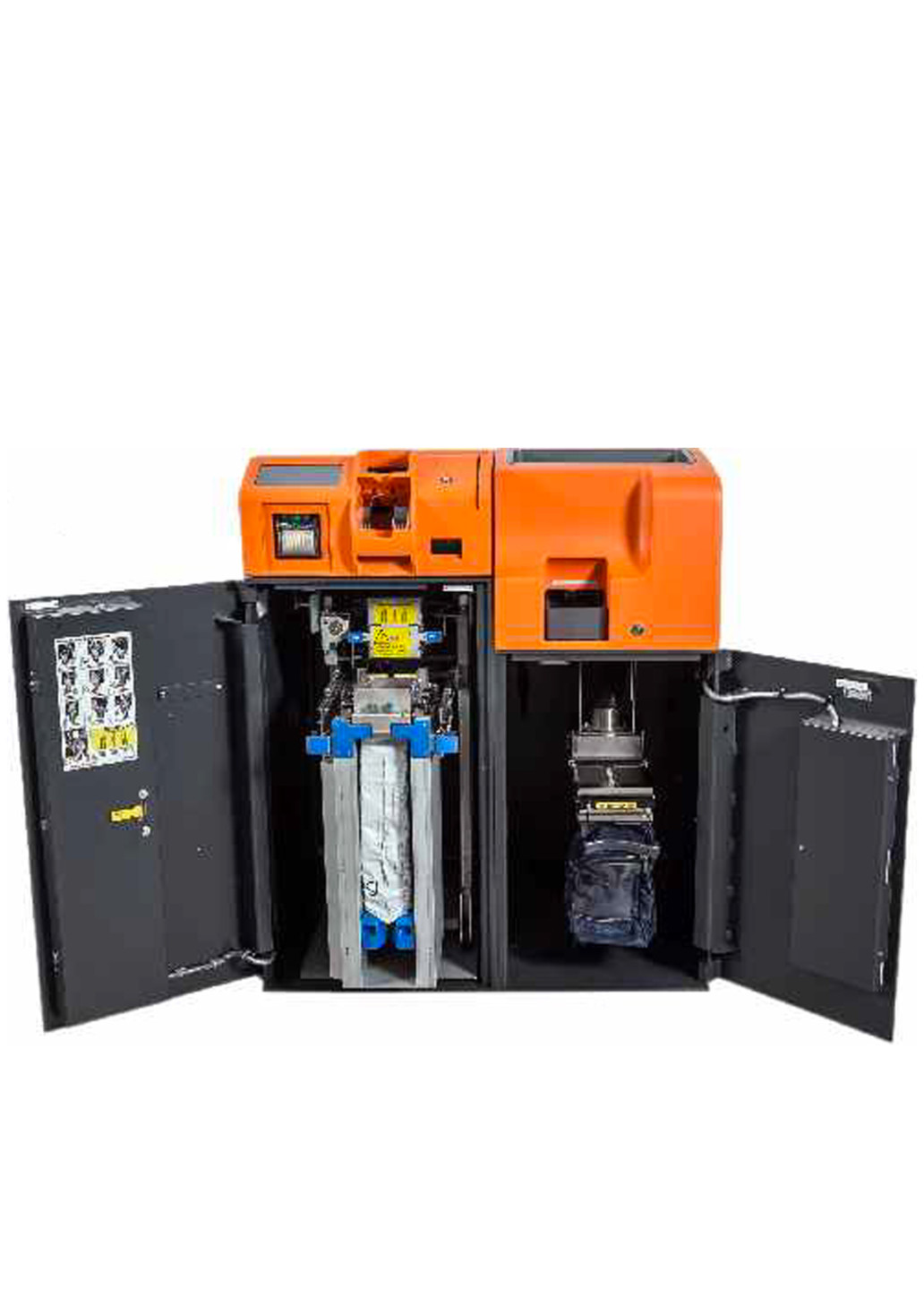

SDM504 and CDS802

Deposit and recycling solution
The combination of banknote/coin recycling SDM504 and CDS802 allows the complete management of the cash flow in the retail back office and represents the optimal solution for small and medium size stores, amusement parks,tollgates, gas stations…
It drastically reduces the time spent in the back office preparing the daily float and collecting the cash at the end of the day and, thanks to the online connection, it optimizes the retail/bank/CIT cooperation.
