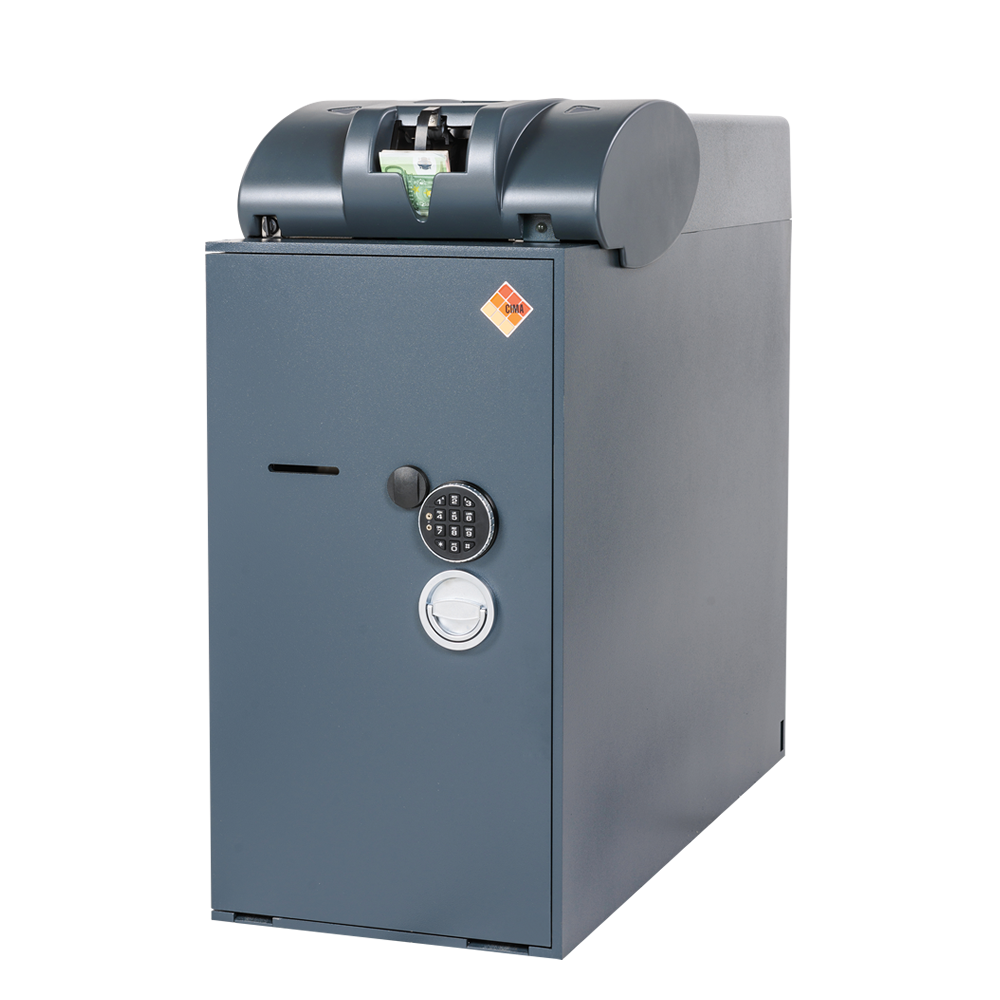

AST 7008
CASH DEPOSIT AND RECYCLING SYSTEM

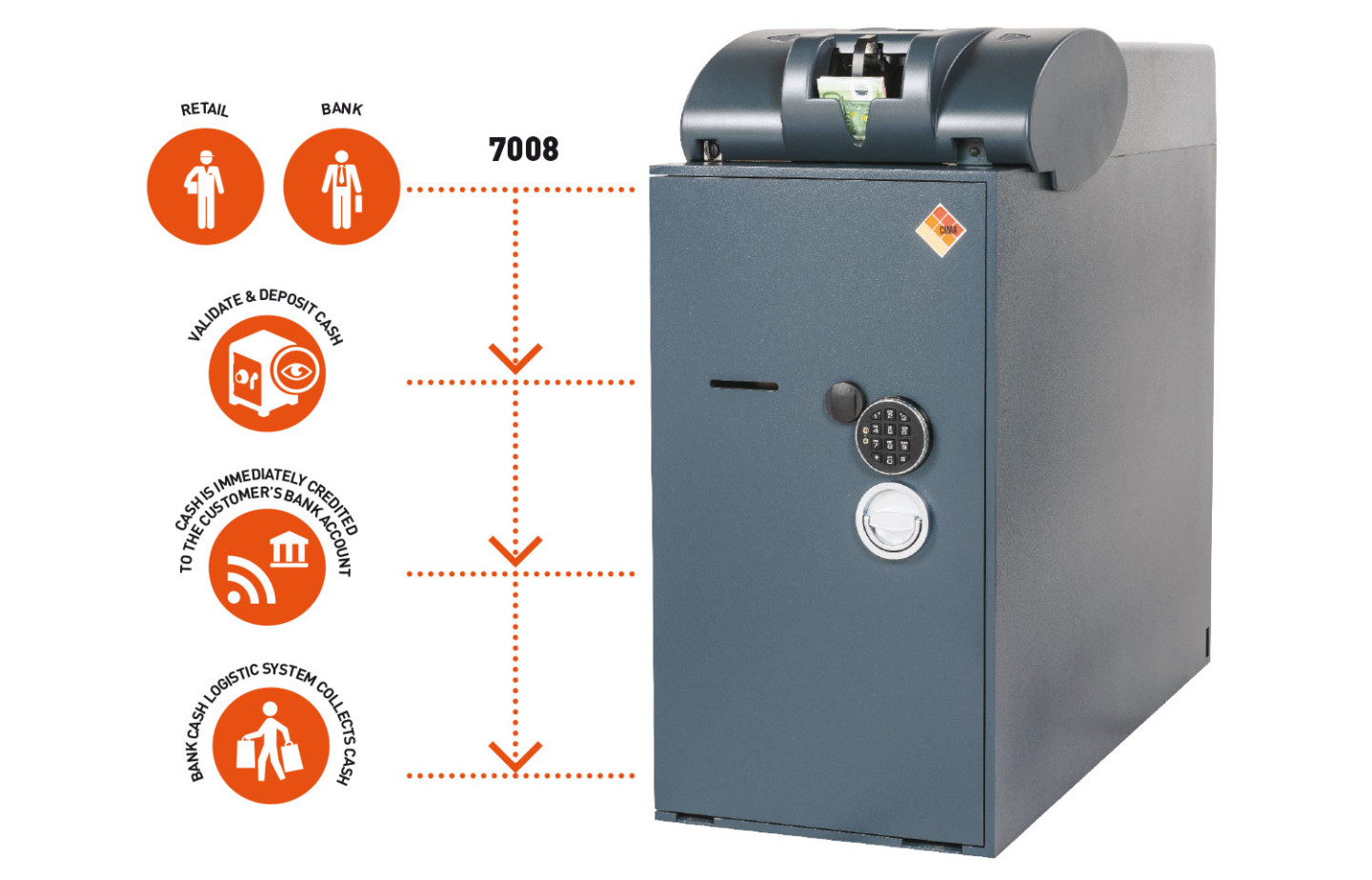

AST 7008 represents the perfect combination between a TCR and a deposit unit.
Perfect for back-office and retail applications, it is featured by a high capacity (up to 5.600 recycled banknotes + 4.000 banknotes in the heat-sealing disposable bag or 10.000 banknotes in the canvas bag).

DEPLIANT

CASH DEPOSIT
AND RECYCLING SYSTEM

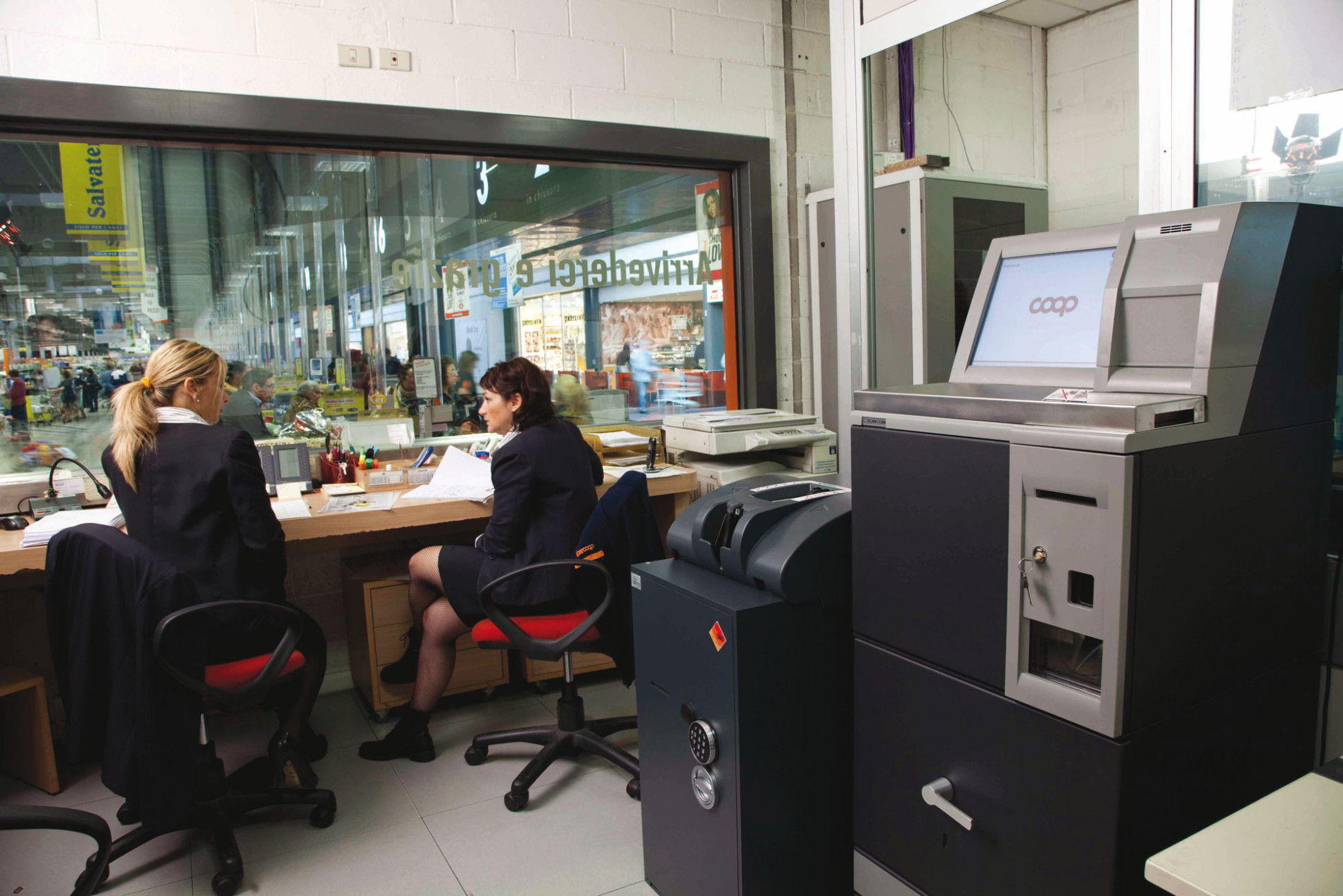

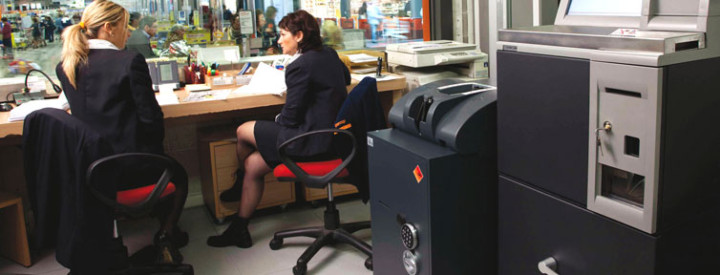

In retail applications it is the perfect tool for the preparation of the teller’s shift start kit and the shift end deposit
• It can be interfaced with coin handling devices
• Availability of different bag typologies such as the high capacity canvas bag, the disposable heat-sealing bag and the disposable heat- sealing stacking bag
Availability of the receipt removable by the CIT in the heat-sealing bag
• Possibility of multicurrency operation
• Banknotes’ recognition is performed by CIMA’s sensor BV 5000 employing all the most advanced technologies: magnetic, infrared, fluorescence, ultraviolet, visible light.
It’s possible to have both the authenticity recognition function and the fitness feature; in both cases all solutions are in compliance with the regulations of the main Central Banks (Euro currency included)

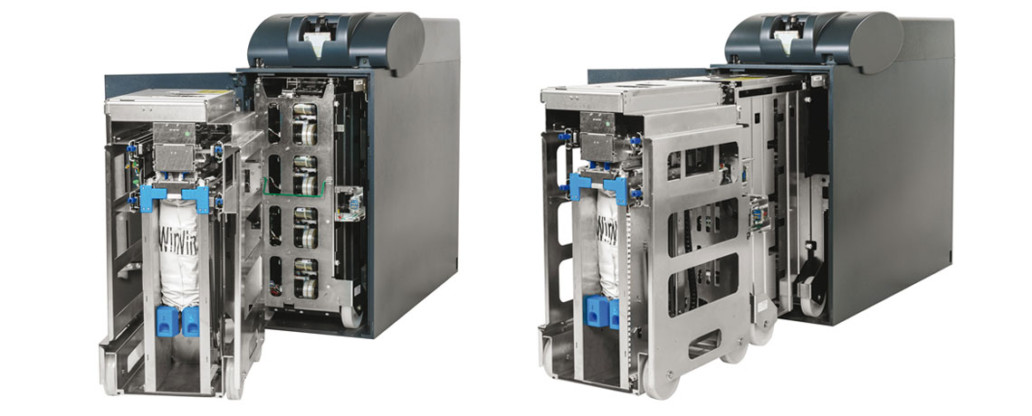

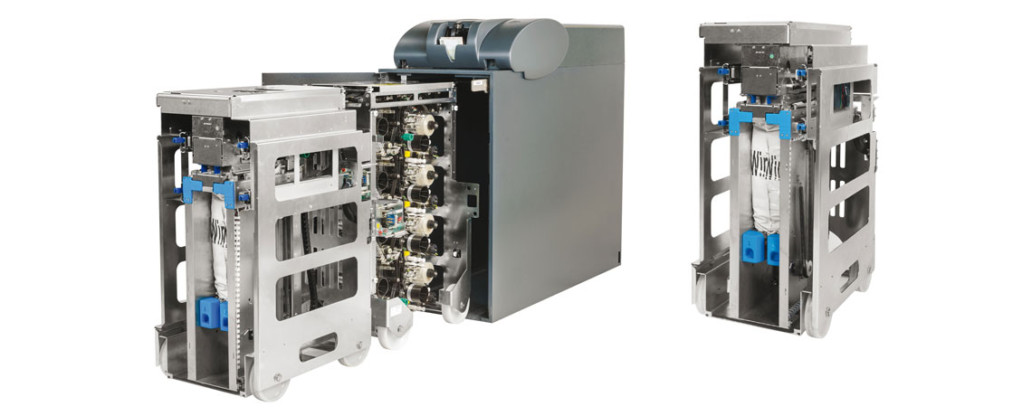

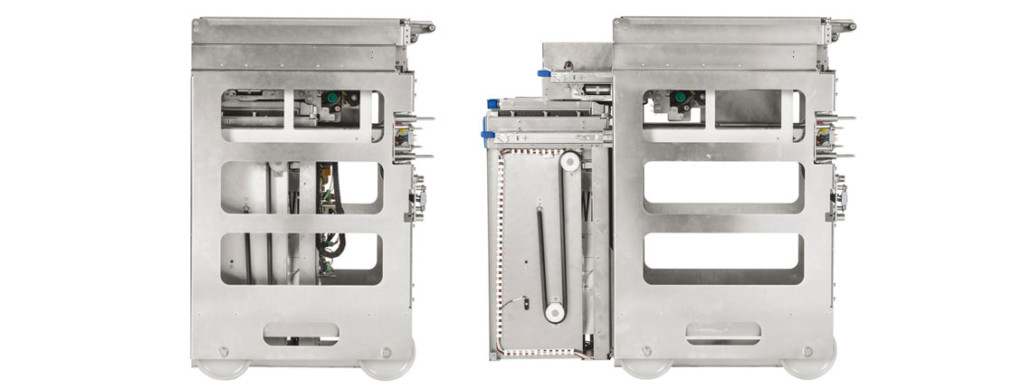

The maintenance footprint is extremely compact thanks to the modular system with two separate internal frames

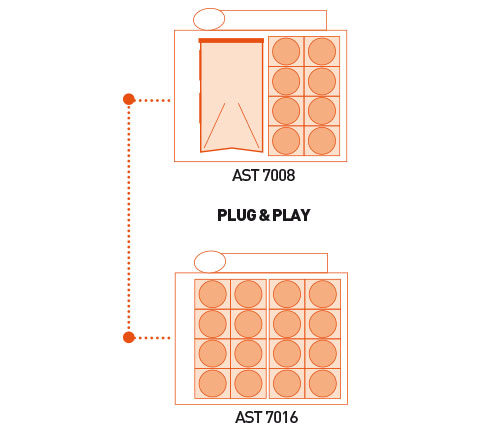

• If the bank’s requirements had to change over time and it was necessary to handle big amounts of banknotes in recycling, AST 7008 can be converted into AST 7016 thanks to the plug & play module, which allows to replace the frame carrying the heat-sealing bag with an 8-drum frame
Flawless fitness management, as the worn out banknotes are directly stored into the bag
The banknotes handled by the drums are automatically stored into the bag: this process automation reducing the manual handling of money helps to prevent and minimize human mistakes
In the Heat version the safe can be opened just once the bag has self-sealed
• Remarkable reduction of the teller’s working time both in deposit and withdrawal stages (high transaction speed: up to 6 banknotes/second)
• Real time update of balances and cash in hands
• Possibility to return the last deposit made
• It considerably reduces the cash in hand within the branch
• Software and hardware for the management of alarms and security locks
• Possibility of remote management through the C-Link platform

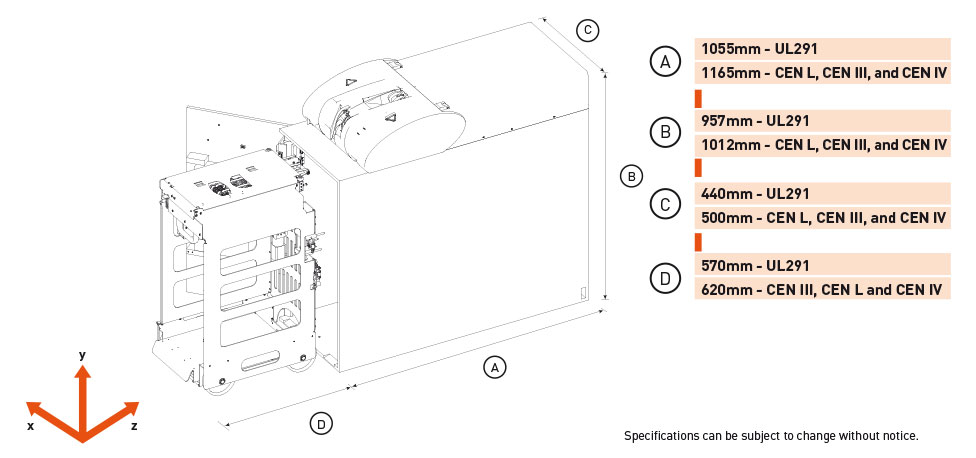

SAFE AVAILABLE IN
12 mm (UL 291), CEN L, CEN III, and CEN IV

WEIGHT
From 450 kg to 740 kg according to the configuration

ELECTRICAL CHARACTERISTICS
Voltage 90 – 240 V AC
Frequency 50 – 60 Hz
Power input 600 W

CONNECTIONS
RS232 serial port or USB 1.0 port or ethernet

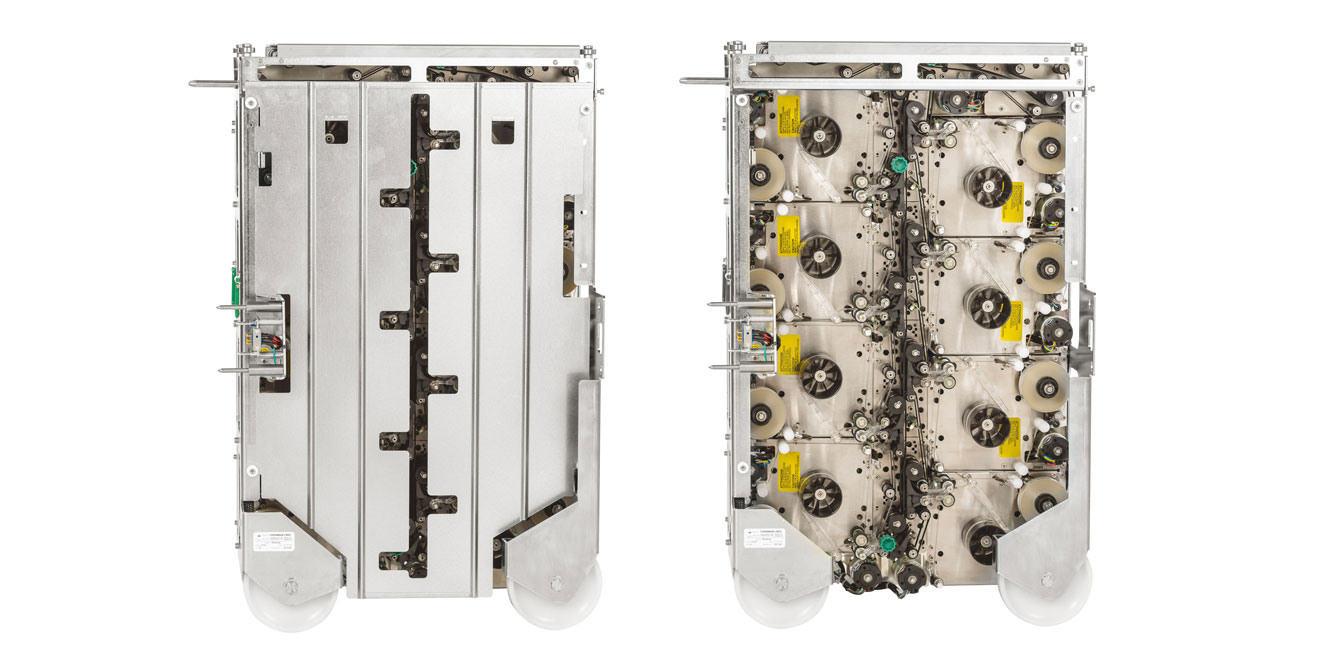

NUMBER OF DRUMS HANDLED
Up to 8

DEPOSIT CAPACITY IN RECYCLING
Up to 700 banknotes each drum

CAPACITY OF BAG DEPOSIT
Up to 10.000 banknotes with canvas bag
Up to 4.000 banknotes with heat-sealing bag
Up to  3.000 with stacking bag

HANDLING OF DRUMS
• Storage by single denomination with recycling function
• Multi-denomination storage with stocking and recycling function
• Drums’ flexibility

BANKNOTES DETECTOR
Authenticity in compliance with the regulations of the main Central Banks
Possibility of multi-currency operation
Fitness in compliance with the regulations of the main Central Banks

DEPOSIT AND WITHDRAWAL SPEED
Up to 6 banknotes per second

SIZE OF THE BANKNOTES HANDLED (standard configuration)
Length from 100 mm to 190 mm
Width from 60 mm to 82 mm

SECURITY
• Handling of 20 time bands
• 3 different alarm outputs
• Timed handling of locks

AST 7008H = RECYCLING + HEAT SEALING BAG

AST 7008 S = RECYCLING + STACKING BAG

C-LINK IS THE INNOVATIVE SOFTWARE PLATFORM FOR THE REMOTE MANAGEMENT OF THE CASH HANDLING DEVICES.

This software gives a further added value to CIMA devices, thanks to different services that allow to increase the level of information about one’s own fleet of machines and simplify their management at the same time.

The functionalities provided by the platform are:
• Remote distribution of the firmware updates as well as the recognition sensor: this allows to have a fleet of machines always updated in a short time, without requiring any interventions in the field.
• Remote monitoring of the status of the devices in real time: this enables to identify possible problems from a remote post, allowing an improvement of the quality of the help-desk service with more certain and detailed information.
• Remote monitoring of the contents of the devices and of the cash handling in real time: this allows to have always a global vision of the level of use of one’s own devices through suitable reports and statistics.
• Remote management of the configuration of the devices: any configuration can be carried out from remote post with no need of on-site interventions.
• Production of the statistics about the handling of unfit banknotes according to the Central Bank current regulation.

C-LINK – MODULES

SOFTWARE ARCHITECTURE

C-LINK APPLIED TO RETAIL

C-LINK APPLIED TO BANK

SENSOR BV5000

BV 5000 is an authenticity and fitness detector. It was born in 2011 and is fruit of CIMA R&D team. It complies with the regulations of the main Central Banks Euro currency included); the templates have been developed for many non-European currencies, as well as for tickets, vouchers and cheques. BV5000 is a full-image sensor, which combines the most advanced technologies on the market: magnetic, infrared, fluorescence, ultraviolet, visible light.
